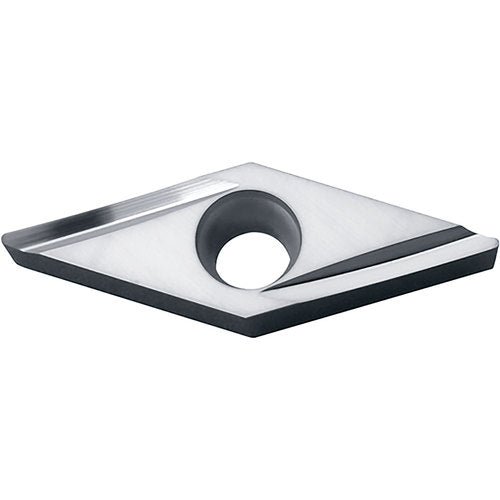

VBGT 2205 Y KW10, 0.008″ Corner Radius, 1/8″ Thick, 1/4″ Inscribed Circle, WC/Co, 35 Degree Diamond, Turning Indexable Insert
Item #: KY90TWE00571
Brand: Kyocera Precision Tools
Model #: TWE00571
| Product Specifications | |
|---|---|
| Applicable Material | Cast Iron | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium |
| Tool Type | Turning Insert |
| Application | Back Boring | Copying | External Turning | Facing | Internal Facing | Profiling | Undercutting |
| Fixing Hole Diameter (D1) | 0.1102″ |
| Insert Style | VBGT |
| Clearance Angle Major (AN) | 5 Degrees |
| Corner Radius (RE) | 0.008″ |
| Number of Cutting Edges | 2 |
| Insert Size | 2205 |
| Cutting Direction (HAND) | Left Hand |
| Insert Thickness (S) | 1/8″ |
| Chip Breaker Type | Y |
| Inscribed Circle Diameter (IC) | 1/4″ |
| Quantity | 10 |
| Insert Included Angle (EPSR) | 35 Degrees |
| Measurement Type | Inch |
| Cutting Edge Material | Carbide |
| Shape | 35° Diamond |
| Coating | WC/Co |
| Series/List # | ISOI |
| Grade | KW10 |
| Model No | 8805905 |
