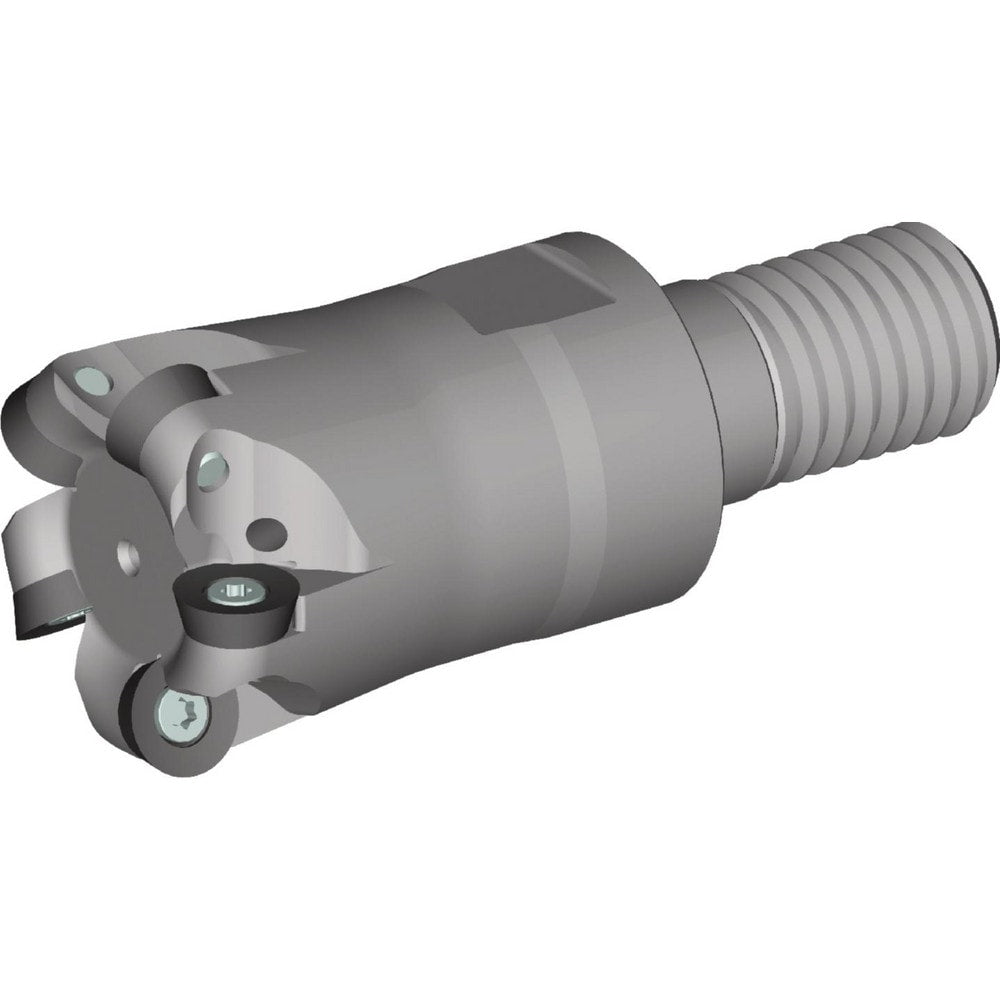

Brand: Widia / Part #: 3926610

Brand: Widia / Part #: 3926610


Item #: 99393274
Brand: Widia
Model #: 3926610

Product Specifications

Minimum Cutting Diameter (mm) 18.00
Maximum Cutting Diameter (mm) 25.00
Maximum Depth of Cut (mm) 3.50
Toolholder Style M170
Shank Type Modular Connection
Shank Diameter 0.8268
Maximum Ramping Angle 8.5
Compatible Insert Style RD.X
Insert Holding Method Screw
Compatible Insert Size Code 0702..
Number Of Cutter Inserts 5
Overall Length (mm) 57.0000
Series M170
Flute Type Straight
Maximum Rpm 12700.000
Shank Length (mm) 22.000
Functional Length (mm) 35.00
Head Length (mm) 35.00
Insert Diameter (mm) 7.000
Tool Application Pocketing; Milling; Ramping; Slotting
Tool Performance General Purpose
Primary Workpiece Material Hard Material; Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel
Primary Workpiece Material Code P; S; H; K; M
Number Of Flutes 5
Coolant Through Yes
$309.52
