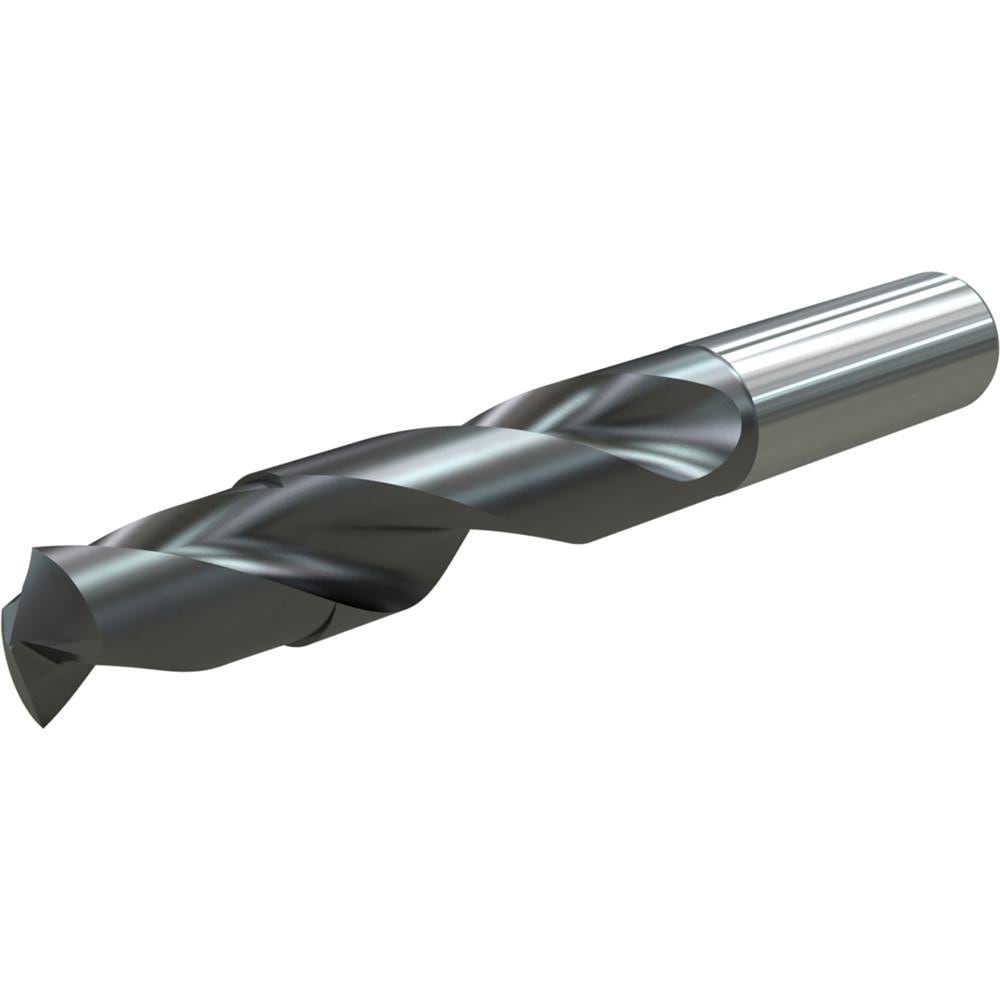

Brand: Widia / Part #: 4143053

Brand: Widia / Part #: 4143053


Item #: 58689928
Brand: Widia
Model #: 4143053

Product Specifications

Drill Bit Size (Decimal Inch) 0.6406
Drill Bit Size (Inch) 41/64
Drill Bit Material Solid Carbide
Cutting Direction Right Hand
Drill Bit Finish/Coating TiAlN
Drill Point Angle (Degrees) 140
Spiral Type Regular
Flute Type Spiral
Point Type Standard
Coolant Through Yes
Shank Type Cylindrical
Number of Flutes 2
Shank Diameter (Decimal Inch) 0.7087
Overall Length (Decimal Inch) 5.6300
Flute Length (Decimal Inch) 3.6600
Series VDS402
Tool Application Drilling
Flute Length x Diamter Ratio 4
Flute By Diameter Ratio 4xD
Maximum Drilling Depth (Decimal Inch) 2.8000
Shank Length (Decimal Inch) 1.8900
Number of Flats 2
Drill Point Length (Decimal Inch) 0.1110
Drill Bit Diameter Tolerance -0.000700 to 0.000000 in
Tool Performance General Purpose
Double Margin No
Drill Bit Grade WU25PD
Material Grade WU25PD
$335.58
