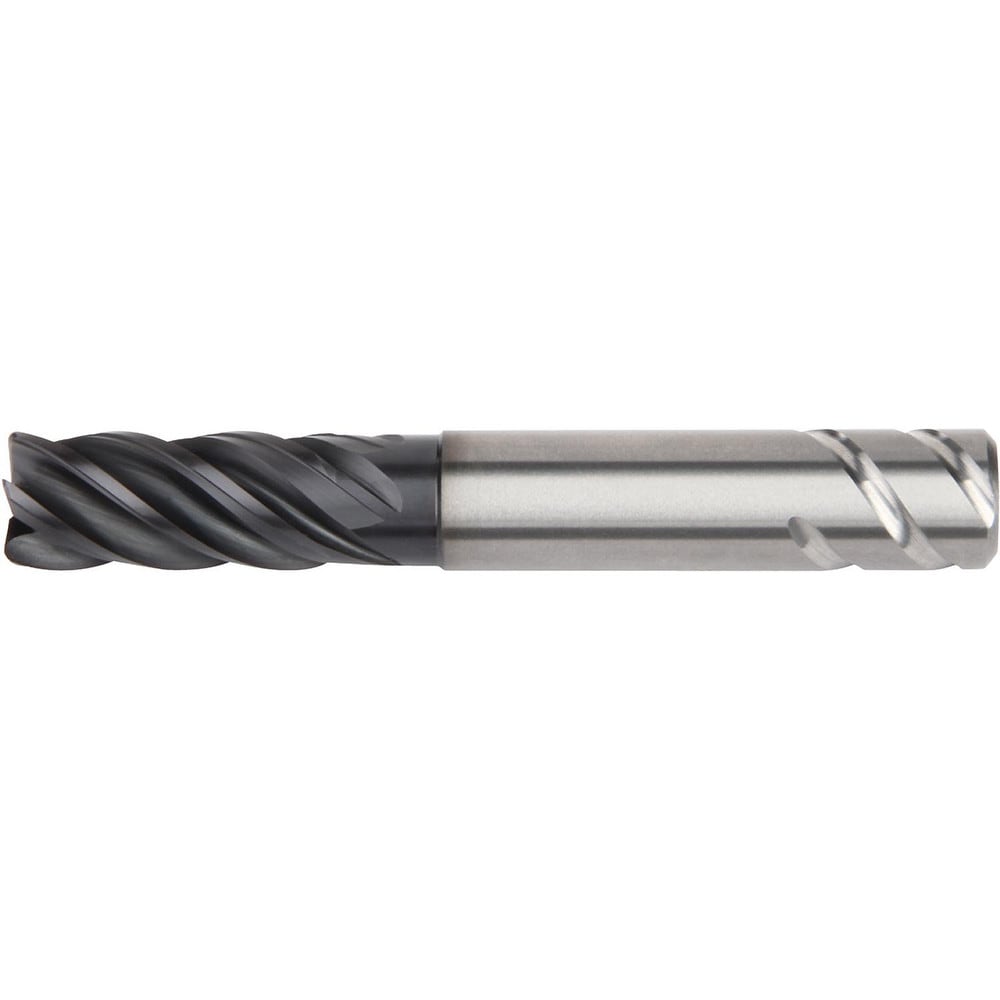

Brand: Widia / Part #: 6168969
Item #: 34038927
Brand: Widia
Model #: 6168969
Product Specifications
| Mill Diameter (Inch) | 5/8 |
| Mill Diameter (Decimal Inch) | 0.6250 |
| Number Of Flutes | 5 |
| Length of Cut (Inch) | 3/4 |
| End Mill Material | Solid Carbide |
| End Type | Single |
| Centercutting | Yes |
| Cutting Direction | Right Hand |
| Shank Diameter (Inch) | 5/8 |
| Finish/Coating | AlTiN |
| Overall Length (Inch) | 6 |
| Helix Angle | 38 |
| Chipbreaker | No |
| Variable Helix | No |
| Variable Index | Yes |
| Extended Reach | Yes |
| Shank Type | Safe-Lock |
| Length of Cut (Decimal Inch) | 0.7500 |
| Material Grade | WS15PE |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Overall Length (Decimal Inch) | 6.0000 |
| Flute Direction | Right Hand |
| Flute Type | Variable Index |
| Helix Style | Medium |
| Length Type | Regular |
| Neck Diameter (Decimal Inch) | 0.5875 |
| Neck Diameter (mm) | 11.940 |
| Reach Length (Inch) | 1 |
| Reach Length (Decimal Inch) | 1.0000 |
| Through Coolant | No |
| Series | 5VNE |
