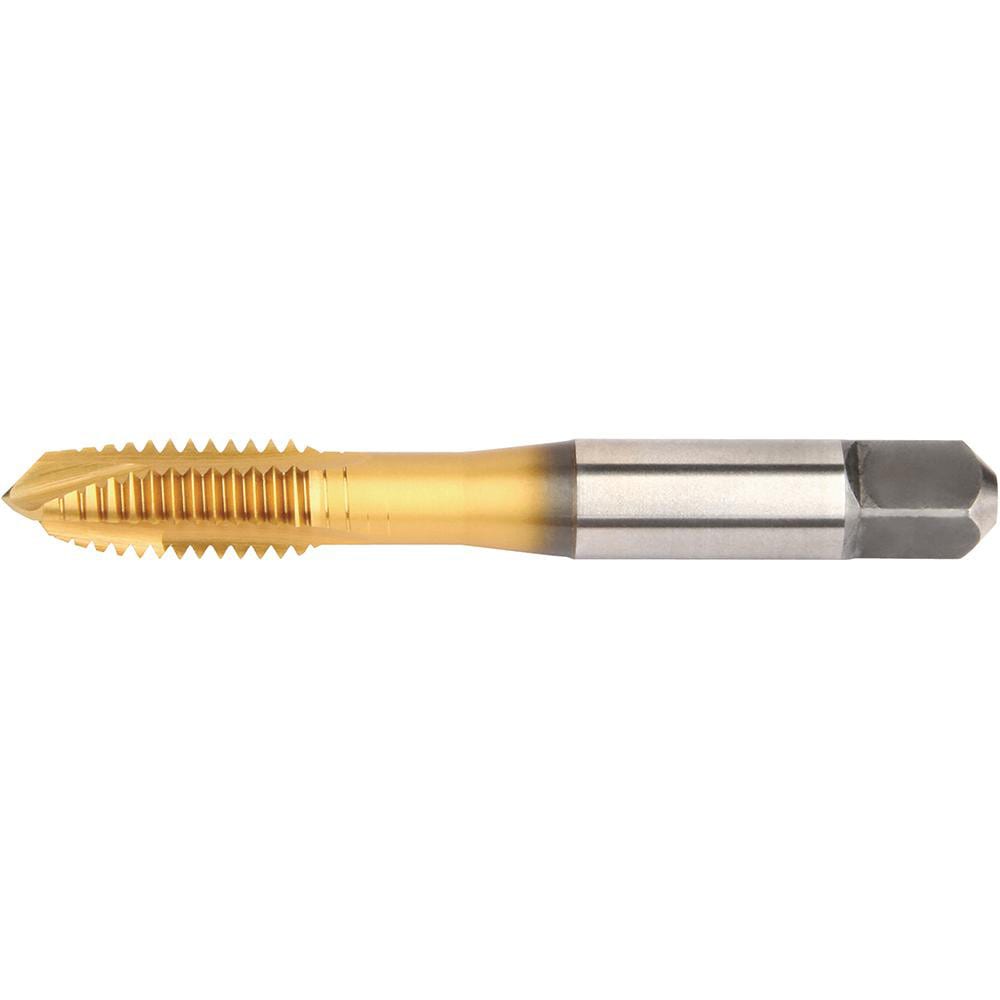

Brand: Widia / Part #: 5387869
Item #: 93318384
Brand: Widia
Model #: 5387869
Product Specifications
| Thread Size (mm) | M5x0.8 |
| Number Of Flutes | 2 |
| Chamfer | Plug |
| Thread Limit | ISO 2 |
| Class Of Fit | ISO 2 (6H) |
| Coating/Finish | TiN |
| Threads per Inch | 32 |
| Material | High Speed Steel |
| Coolant Through | No |
| Thread Direction | Right Hand |
| Thread Depth (mm) | 23.60 |
| Thread Pitch (mm) | 0.80 |
| Thread Standard | UNC |
| Material Grade | WU41EG |
| Thread Length (mm) | 15.60 |
| Overall Length (mm) | 59.6000 |
| Shank Diameter (Decimal Inch) | 0.2165 |
| Square Length (mm) | 7.00 |
| Square Size (mm) | 4.50 |
| Material Application | Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel |
| Series | VT-SPO |
