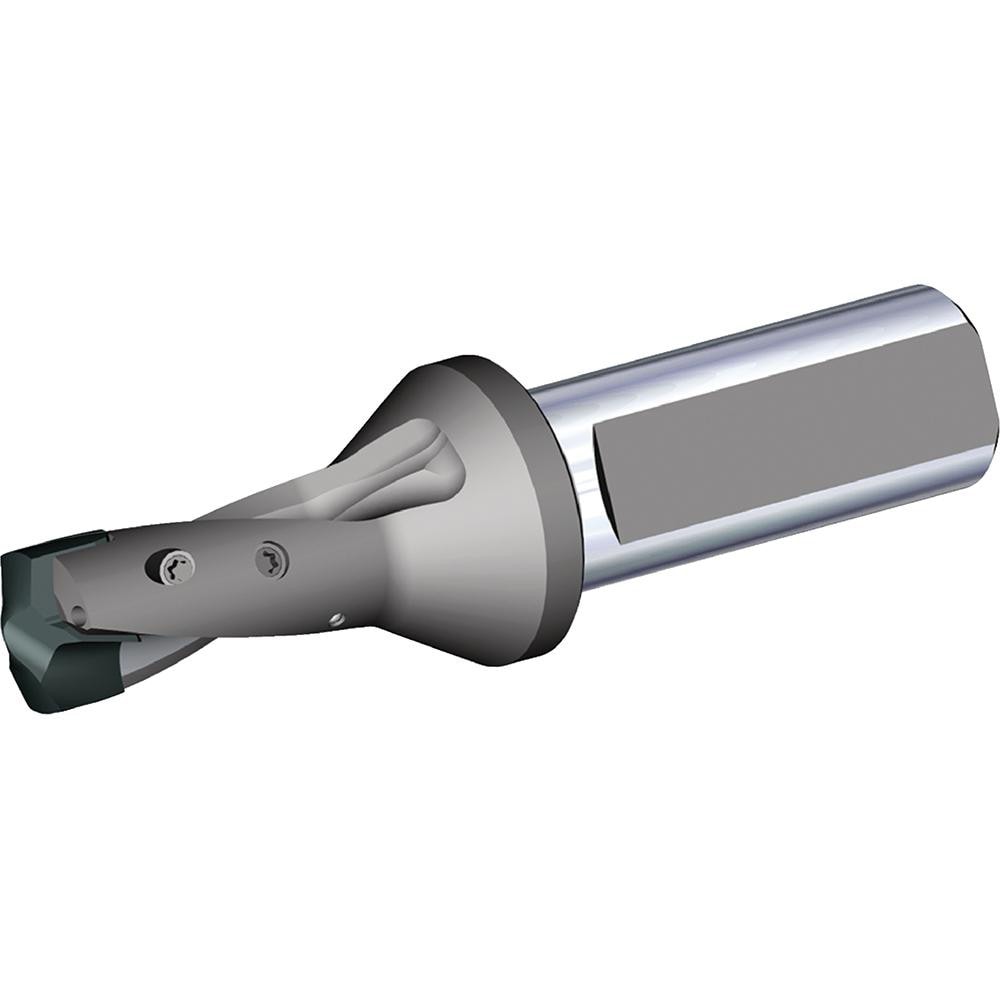

Brand: Widia / Part #: 6680916
Item #: 90229337
Brand: Widia
Model #: 6680916
Product Specifications
| Minimum Drill Diameter (Decimal Inch) | 0.7481 |
| Maximum Drill Diameter (Decimal Inch) | 0.7874 |
| Drill Depth by Diameter Ratio | 1.5xD |
| Maximum Drill Depth (Decimal Inch) | 1.1811 |
| Shank Type | Flatted |
| Insert Style | TDMX |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Insert Seat Size | D |
| Tool Material | Steel |
| Compatible Insert Style | TDMX |
| Compatible Insert Size Code | D |
| Overall Length (Decimal Inch) | 4.7638 |
| Series | TDMX |
| Toolholder Style | TDMX |
| Flute Length (Decimal Inch) | 1.1811 |
| Body Length (Decimal Inch) | 2.0355 |
| Shank Length (Decimal Inch) | 2.2047 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Coolant Hole Diameter (Decimal Inch) | 0.1378 |
| Cutting Direction | Right Hand |
| Coolant Through | Yes |
| Number Of Flutes | 2 |
