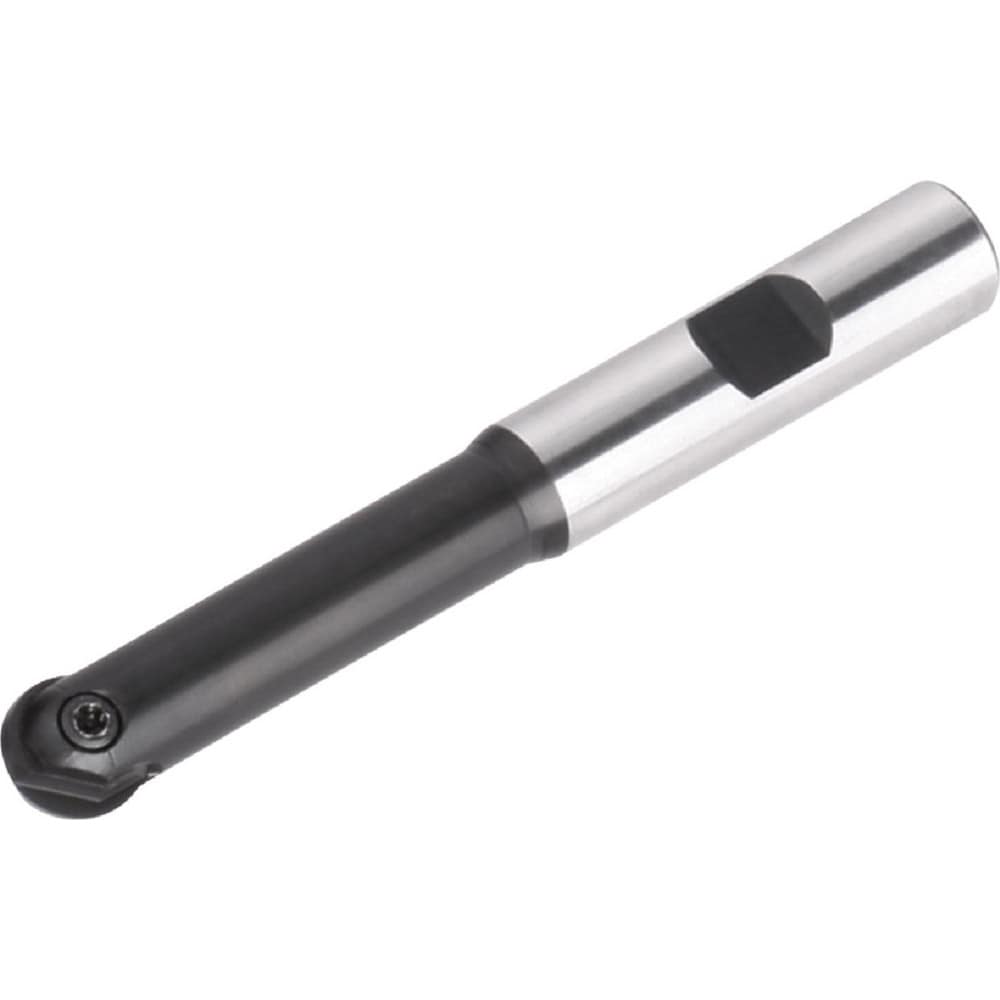

Brand: Widia / Part #: 2243620
Item #: 97185508
Brand: Widia
Model #: 2243620
Product Specifications
| Cutting Diameter (mm) | 16.00 |
| Tool Material | Steel |
| Maximum Depth of Cut (mm) | 8.00 |
| Maximum Ramping Angle | 0 |
| Shank Type | Weldon Flat |
| Shank Diameter (mm) | 16.00 |
| Insert Holding Method | Screw |
| Compatible Insert Style | M270B.. |
| Compatible Insert Size Code | 16 |
| Toolholder Style | M270 |
| Tapered Neck | No |
| Overall Length (mm) | 105.00 |
| Series | M270 |
| Head Length (mm) | 57.00 |
| Maximum RPM | 53000 |
| Tool Application | Profile Milling; Semi-Finishing; Milling |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Number Of Flutes | 2 |
| Coolant Through | No |
| Number Of Inserts | 1 |
