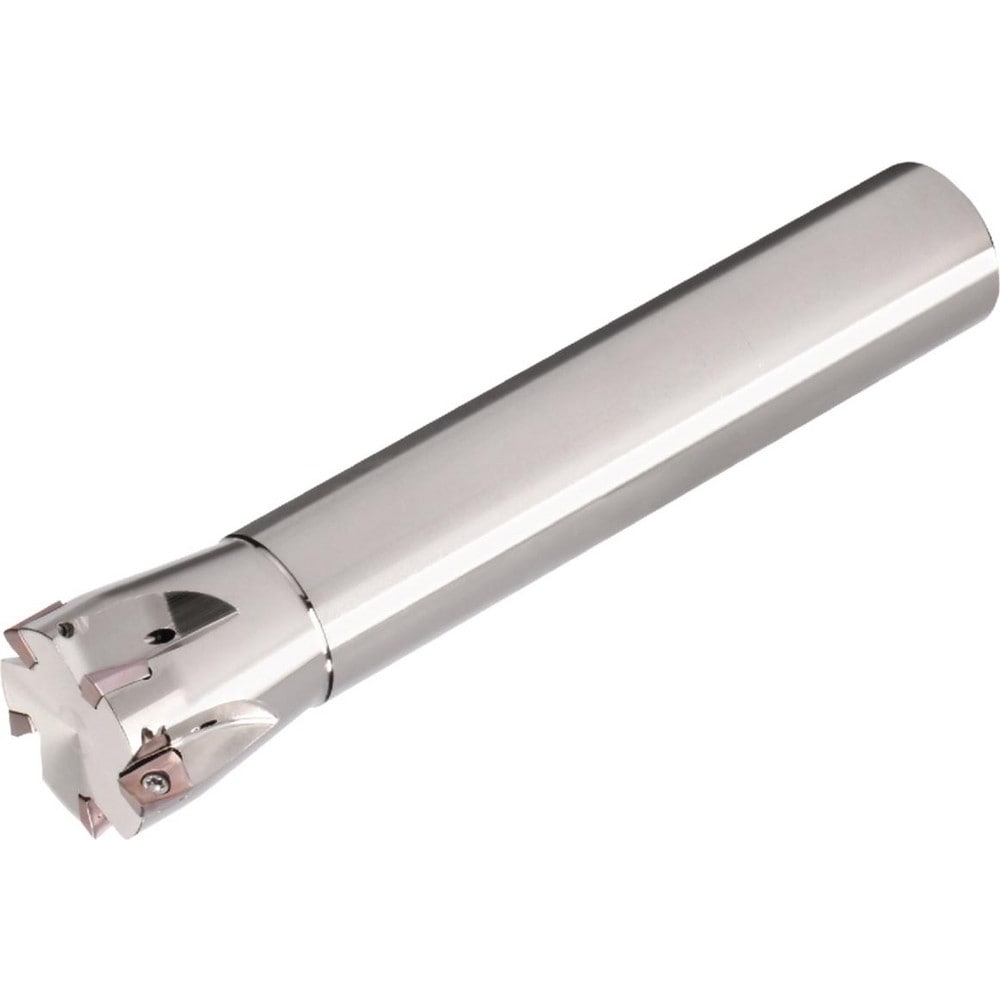

Brand: Widia / Part #: 3577812
Item #: 97985618
Brand: Widia
Model #: 3577812
Product Specifications
| Minimum Cutting Diameter (mm) | 20.00 |
| Maximum Cutting Diameter (mm) | 20.00 |
| Maximum Depth of Cut (mm) | 6.00 |
| Cutter Style | M680 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 16.0000 |
| Maximum Ramping Angle | 2 ? |
| Insert Holding Method | Screw |
| Shank Taper Size | None |
| Overall Length (mm) | 110.0000 |
| Tool Material | Steel |
| Series | M6800S |
| Flute Type | Spiral |
| Lead Angle | 90 |
| Shank Length (mm) | 89.600 |
| Head Length (mm) | 20.40 |
| Maximum RPM | 40200.000 |
| Tool Application | Pocketing; Milling; Ramping; Slotting |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| End Mill Type | Shoulder Square End Mill |
| Rake | Negative (Radial); Positive (Axial) |
| Complete Insert Compatibility | BDMT07.. |
| Insert Compatibility | BDMT07.. |
| Hand of Holder | Right Hand |
| Rake Angle | -10.40 ? (Radial);16.30 ? (Axial) |
| Multi-Use Tool | Yes |
| ISO Number | 12396442000 |
| Manufacturers Catalog Number | 12396442000 |
| Usable Length (mm) | 20.400 |
| Number Of Flutes | 5 |
| Number Of Cutter Inserts | 5 |
| Coolant Through | Yes |
