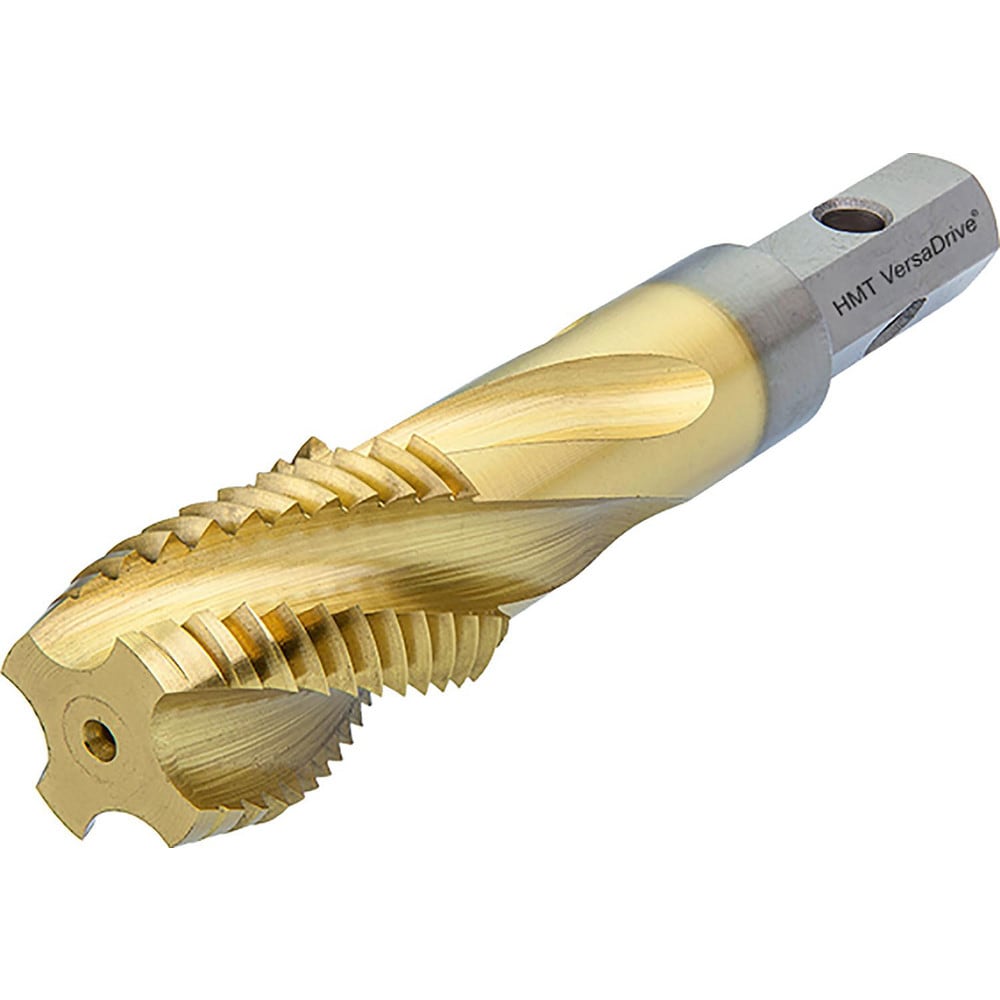

Brand: Holemaker Technology / Part #: 309020-0040
Item #: 87434361
Brand: Holemaker Technology
Model #: 309020-0040
Product Specifications
| Thread Size (Inch) | 1/2-13 |
| Chamfer | Modified Bottoming |
| Class Of Fit | 7H |
| Number Of Flutes | 3 |
| Material | High Speed Steel |
| Threads per Inch | 13 |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Coating/Finish | TiN |
| Coolant Through | No |
| Overall Length (Inch) | 3-1/8 |
| Thread Length (Inch) | 1-3/64 |
| Thread Pitch (Decimal Inch) | 0.0769 |
| Thread Standard | UNC 60? |
| Shank Diameter (mm) | 11.0000 |
