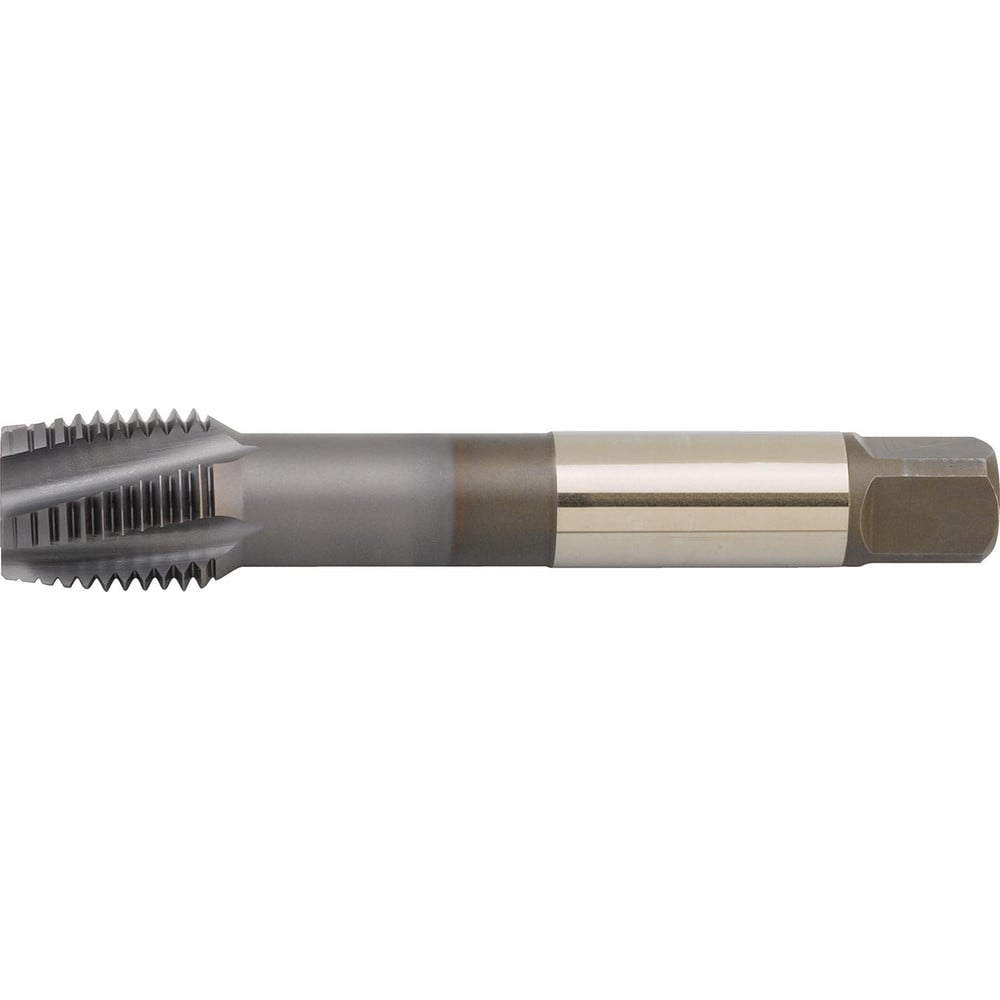

Brand: Widia / Part #: 5143530
Item #: 90024605
Brand: Widia
Model #: 5143530
Product Specifications
| Thread Size (mm) | M16x2 |
| Chamfer | Modified Bottoming |
| Thread Limit | D10 |
| Class Of Fit | 6HX |
| Number Of Flutes | 4 |
| Material | Powdered Metal |
| Threads per Inch | 13 |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Coating/Finish | TiCN |
| Thread Depth (mm) | 51.00 |
| Coolant Through | Yes |
| Thread Length (mm) | 20.00 |
| Overall Length (mm) | 110.0000 |
| Thread Pitch (mm) | 2.00 |
| Thread Standard | Metric |
| Material Grade | WU32MG |
| Shank Diameter (mm) | 12.0000 |
| Square Length (mm) | 12.00 |
| Square Size (mm) | 9.00 |
| Material Application | High-Temperature Alloy; Steel |
| Series | GT31 |
