Brand: Widia / Part #: 3641647
Item #: 99723132
Brand: Widia
Model #: 3641647
Product Specifications

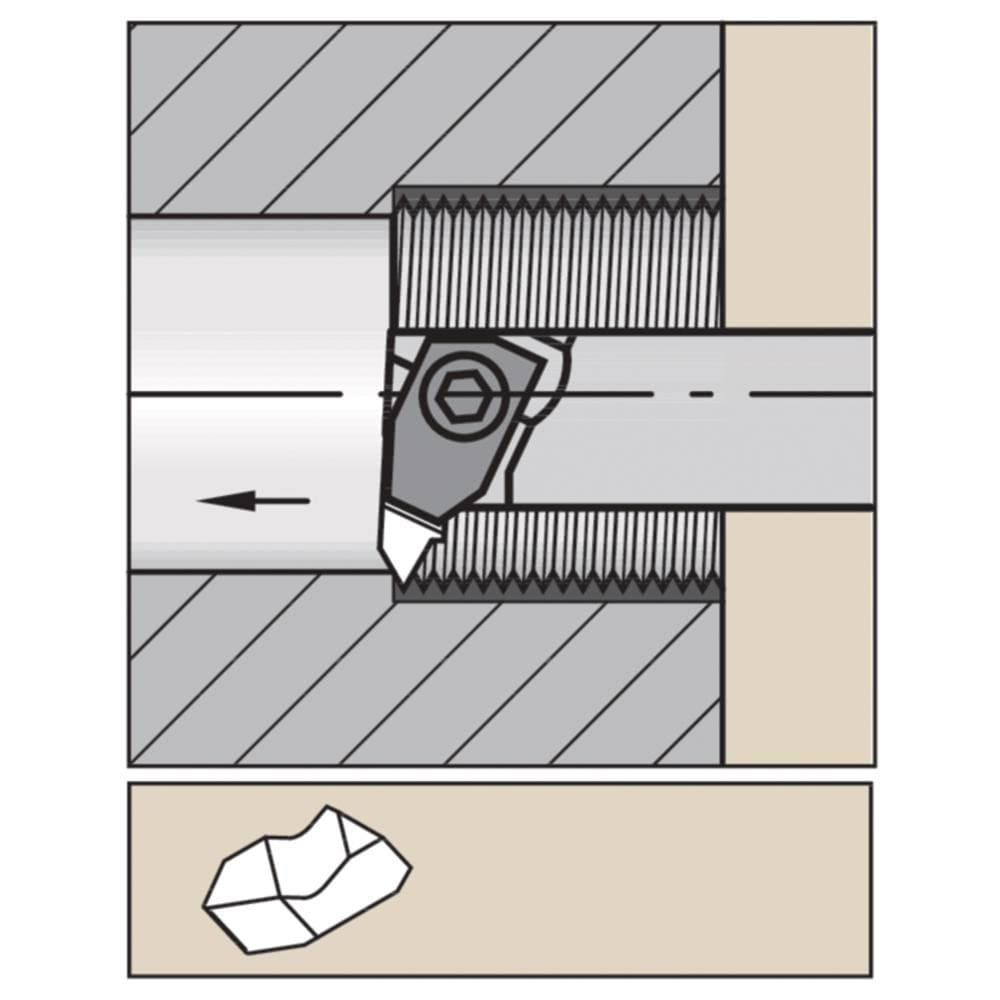

| Thread Type | Internal |
| Hand of Holder | Right Hand |
| Compatible Insert Size Code | 1 |
| Shank Width/Diameter (mm) | 12.00 |
| Toolholder Style | MNNT |
| Insert Compatibility | N.1L |
| Coolant Entry Style Code | 1-Axial Concentric Entry |
| Insert Holding Method | Clamp |
| Shank Height (mm) | 0.00 |
| Shank Length (mm) | 118.700 |
| Overall Length (mm) | 150.0000 |
| Minimum Bore Diameter (mm) | 11.50 |
| Series | A-NNT-1 |
| Multi-use Tool | Yes |
| Cutting Tool Application | Grooving; Chamfering; Threading |
| Head Length (mm) | 31.30 |
| Maximum Depth of Cut (mm) | 1.25 |
| Adjustable Overhang | Yes |
| Maximum Overhang (Inch) | 1.2323 |
| Back of Bar to Cutting Edge (mm) | 13.00 |
| Center to Cutting Edge (mm) | 7.00 |
| Insert Inscribed Circle (Decimal Inch) | 0.1000 |
| Insert Inscribed Circle (mm) | 2.54 |
| Primary Workpiece Material Code | P; S; H; K; M; N; O |
| Coolant Hole Diameter (Decimal Inch) | 0.1600 |
| Coolant Hole Thread Size (Inch) | 1/16-27 NPT |
| Toolholder Material | Steel |
| Insert Thickness (Decimal Inch) | 0.1000 |
| Style | MNNT |
| Coolant Through | Yes |
