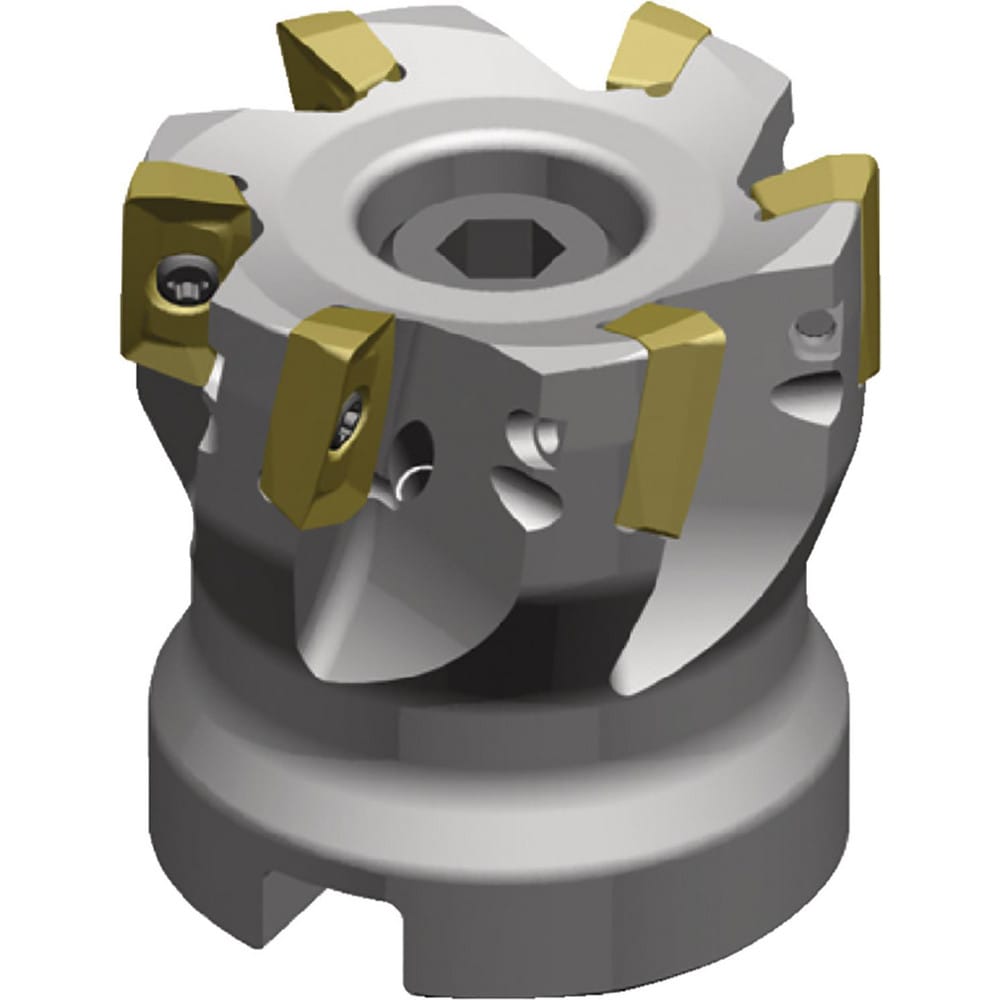

Brand: Widia / Part #: 5988023
Item #: 09909177
Brand: Widia
Model #: 5988023
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 6.0000 |
| Maximum Cutting Diameter (Decimal Inch) | 6.0000 |
| Maximum Depth of Cut (Decimal Inch) | 0.6160 |
| Arbor Hole Diameter (Decimal Inch) | 1.5000 |
| Compatible Insert Size Code | XD.T1704.. |
| Maximum Ramping Angle | 0.7 |
| Cutter Style | VSM |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Lead Angle | 90 |
| Rake | Negative (Radial); Positive (Axial) |
| Rake Angle | -3.400 |
| Series | VSM17 |
| Maximum Body Diameter (Decimal Inch) | 5.8900 |
| Overall Height (Decimal Inch) | 2.0000 |
| Keyway Width (mm) | 16.13 |
| Hub Diameter (Decimal Inch) | 3.3750 |
| Maximum RPM | 13700.000 |
| Tool Application | Milling; Slotting; Ramping |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Number of Adjustable Pockets | 0 |
| ISO Number | VSM17D600Z12S150XD17 |
| Coolant Hole Diameter (Decimal Inch) | 0.0980 |
| Complete Insert Compatibility | XD_T1704__PE_R___ |
| Toolholder Material | Steel |
| Manufacturers Catalog Number | VSM17D250Z05S075XD17 |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 12 |
| Number Of Flutes | 12 |
