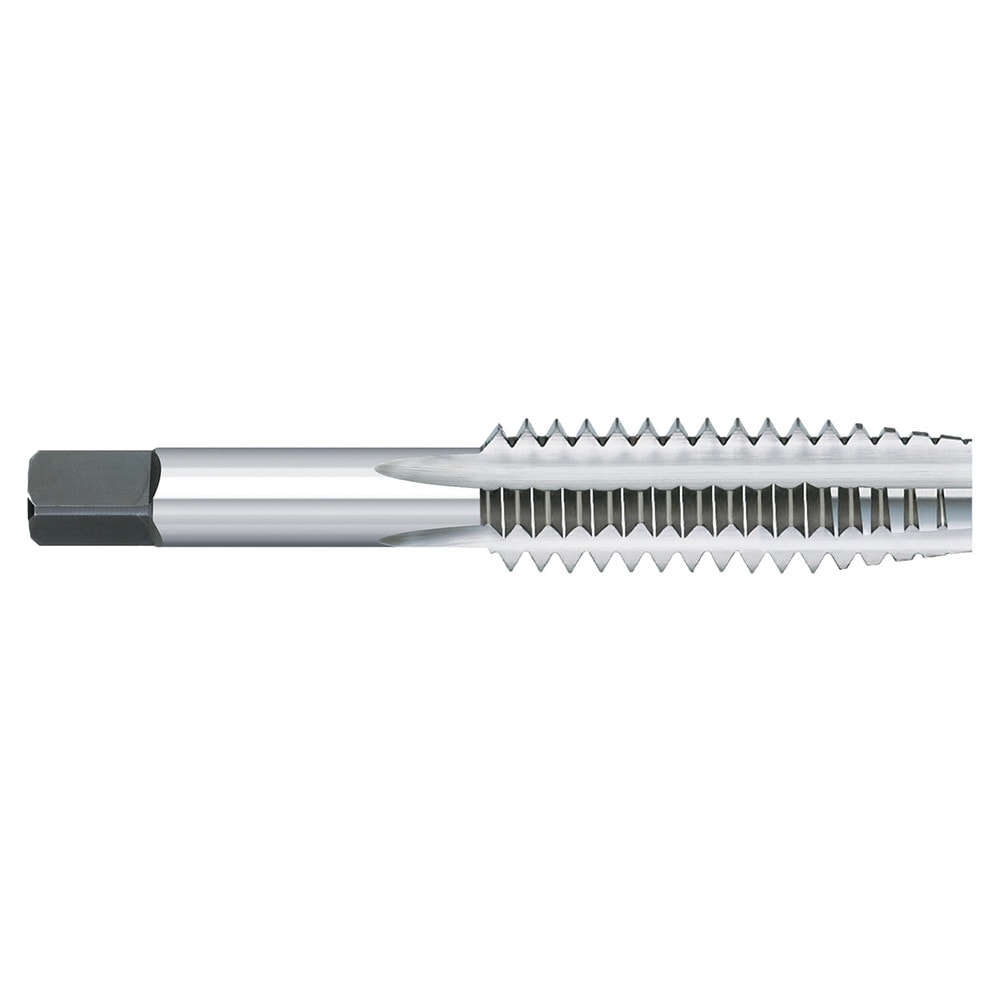

Brand: Titan USA / Part #: TT90700
Item #: 87439204
Brand: Titan USA
Model #: TT90700
Product Specifications
| Thread Size (Inch) | 1-1/8-8 |
| Thread Limit | H5 |
| Class Of Fit | 2B/3B |
| Number Of Flutes | 4 |
| Chamfer | Taper |
| Material | High Speed Steel |
| Coating/Finish | Uncoated |
| Threads per Inch | 8 |
| Thread Direction | Right Hand |
| Coolant Through | No |
| Thread Standard | UN |
| Thread Pitch (Decimal Inch) | 0.1250 |
| Overall Length (Decimal Inch) | 5.4375 |
| Thread Length (Decimal Inch) | 2.5625 |
| Thread Length (Inch) | 2-9/16 |
| Shank Diameter (Decimal Inch) | 0.8960 |
| Square Length (Inch) | 7/8 |
| Square Size (Decimal Inch) | 0.6719 |
| Series | General Purpose Taps - High Speed Steel - Hand Taps - 8 Pitch |
