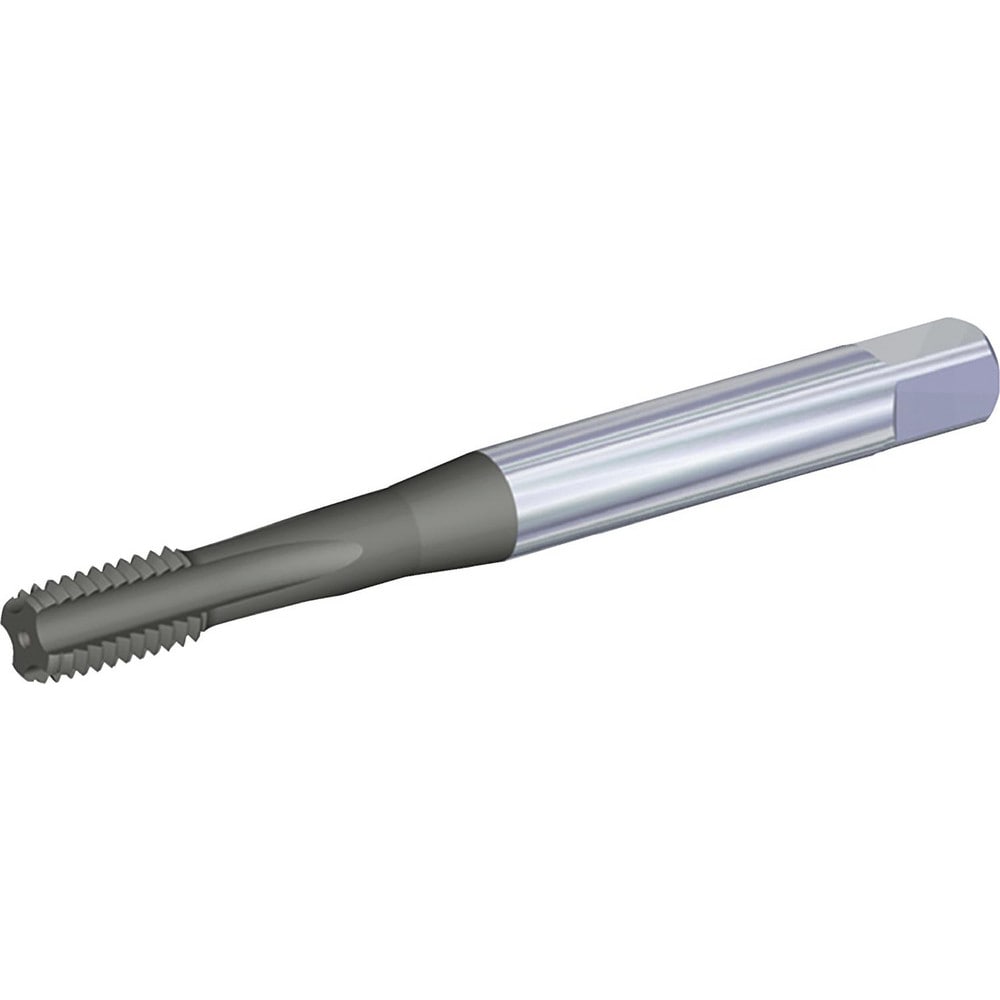

Brand: Widia / Part #: 5520827
Item #: 80489198
Brand: Widia
Model #: 5520827
Product Specifications
| Tap Type | Machine |
| Thread Size (mm) | M8x1.25 |
| Class Of Fit | 6HX |
| Number Of Flutes | 4 |
| Chamfer | Bottoming |
| Material | High Speed Steel |
| Coating/Finish | TiCN |
| Threads per Inch | 20.3200 |
| Thread Direction | Right Hand |
| Coolant Through | No |
| Thread Standard | Metric |
| Overall Length (mm) | 90.00 |
| Thread Pitch (mm) | 1.25 |
| Thread Length (mm) | 13.00 |
| Material Grade | WK12PG |
| Thread Depth (mm) | 13.00 |
| Application | Metal |
| Shank Diameter (mm) | 8.00 |
| Tapping Depth (mm) | 35.00 |
| Square Length (mm) | 9.00 |
| Square Size (mm) | 6.13 |
| Material Application | Cast Iron |
| Series | GX35 |
| Shank Length (mm) | 46.20 |
| Shank Length (Decimal Inch) | 3.0315 |
