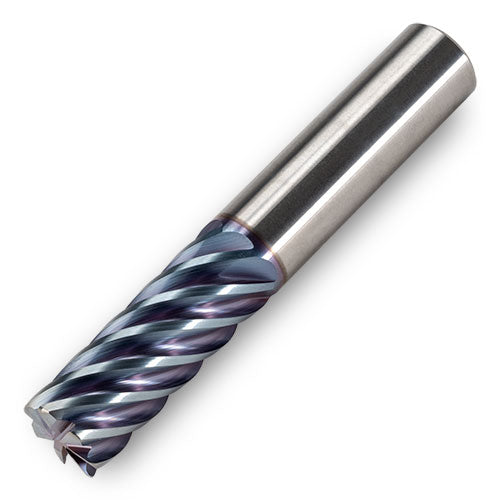

RE1-.7504.004.00Z7000C7
Item #: IC079590151
Brand: Ingersoll
Model #: 9590151
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 3/4″ |
| Usable Length (LU) | 4″ |
| Connection Diameter Machine Side (DCONMS) | 3/4″ |
| Application | Helical Interpolation | Rampdown | Shouldering |
| Depth of Cut Maximum (APMX) | 4″ |
| Ramping Angle Maximum (RMPX) | 1.5 Degrees |
| Overall Length (OAL) | 7″ |
| Body Material | Steel |
| Flute Count (NOF) | 7 |
| Decimal Equivalent | 0.75″ |
| Flute Helix Angle (FHA) | 40 Degrees |
| Measurement Type | Inch |
| End Shape | Square |
| Tool Cutting Edge Angle (KAPR) | 90 Degrees |
