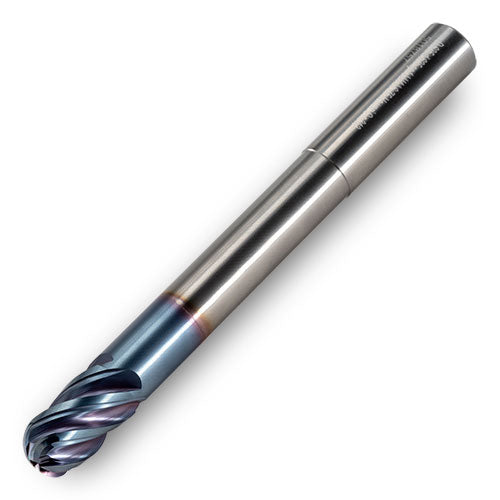

REB-1.001.501.50Z6500C4
Item #: IC079590062
Brand: Ingersoll
Model #: 9590062
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 1″ |
| Usable Length (LU) | 1-1/2″ |
| Connection Diameter Machine Side (DCONMS) | 1″ |
| Application | | Helical Interpolation | Rampdown | Shouldering | |
| Depth of Cut Maximum (APMX) | 1-1/2″ |
| Corner Radius (RE) | 1/2″ |
| Overall Length (OAL) | 4″ |
| Body Material | Steel |
| Flute Count (NOF) | 6 |
| Decimal Equivalent | 1″ |
| Flute Helix Angle (FHA) | 38 Degrees |
| Measurement Type | Inch |
