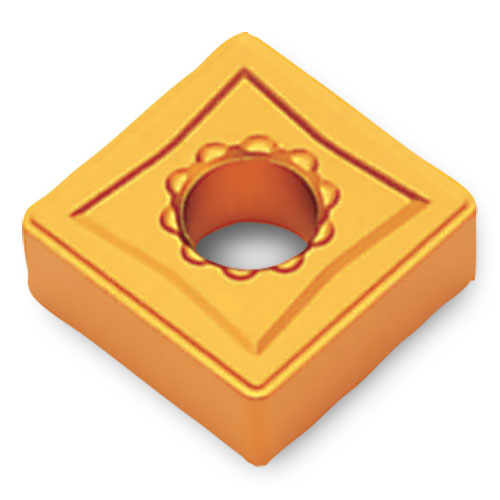

SNMG866RT TT8135
Item #: IC065522651
Brand: Ingersoll
Model #: 5522651
| Product Specifications | |
|---|---|
| Insert Style | SNMG |
| Grade | TT8135 |
| Corner Radius (RE) | 0.094″ |
| Min D.O.C. | 0.197″ |
| Insert Size | 866 |
| Depth of Cut Maximum (APMX) | 0.472″ |
| Cutting Edge Length (L) | 0.906″ |
| Min. Turning Feed (ft(min)) | 0.018″ |
| Insert Thickness (S) | 3/8″ |
| Max. Turning Feed (ft(max)) | 0.039″ |
| Inscribed Circle Diameter (IC) | 1″ |
| Measurement Type | Inch |
| Coating | TiCN+Al2O3+TiN |
| Body Material | Carbide |
