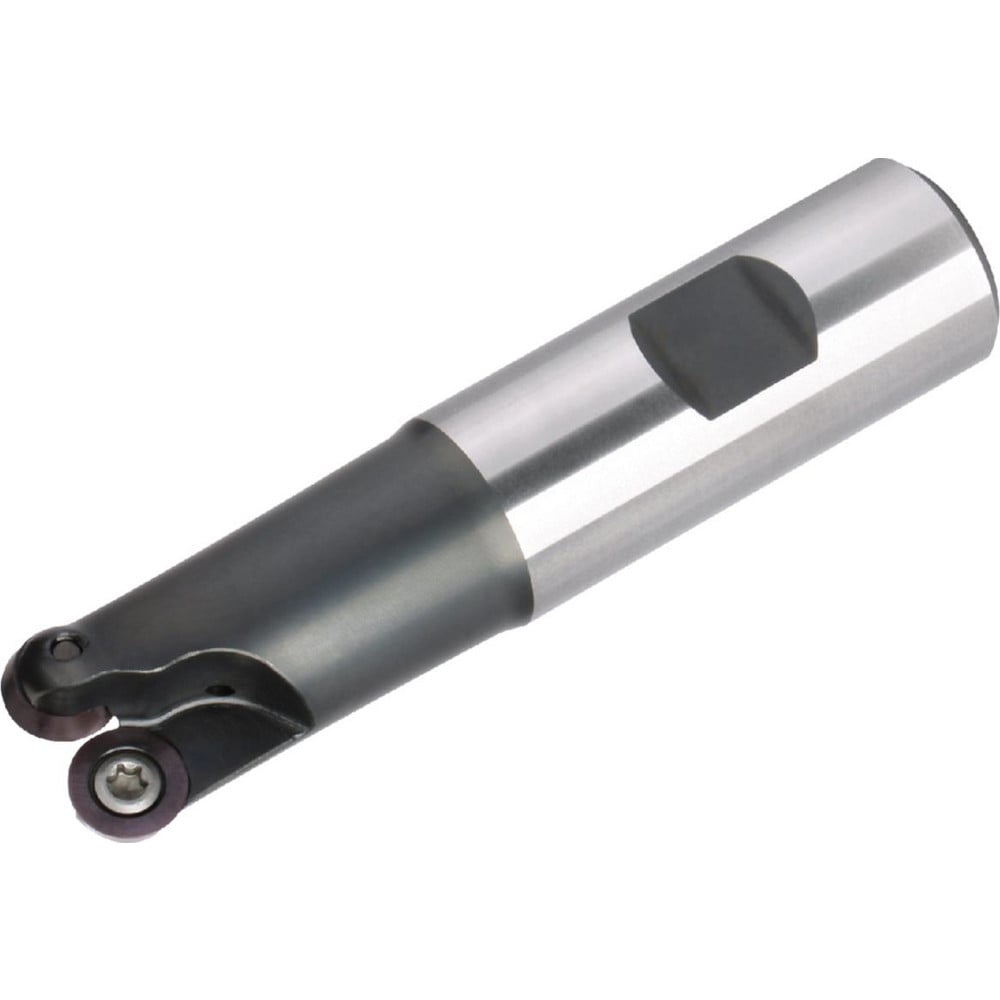

Brand: Widia / Part #: 2021339

Brand: Widia / Part #: 2021339


Item #: 99420382
Brand: Widia
Model #: 2021339

Product Specifications

Minimum Cutting Diameter (mm) 16.00
Maximum Cutting Diameter (mm) 26.00
Maximum Depth of Cut (mm) 5.00
Toolholder Style M100
Shank Type Weldon Flat
Shank Diameter 1.2598
Maximum Ramping Angle 13.5
Compatible Insert Style RD..
Insert Holding Method Screw
Compatible Insert Size Code 1003
Number Of Cutter Inserts 2
Overall Length (mm) 142.0000
Series M100
Flute Type Straight
Maximum Rpm 22000.000
Shank Length (mm) 60.000
Functional Length (mm) 142.00
Head Length (mm) 82.00
Insert Diameter (mm) 10.000
Tool Application Pocketing; Milling; Ramping; Slotting
Tool Performance General Purpose
Primary Workpiece Material Hard Material; Non-Ferrous Metal; Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel
Primary Workpiece Material Code P; S; H; K; M; N
Number Of Flutes 2
Coolant Through Yes
$427.27
