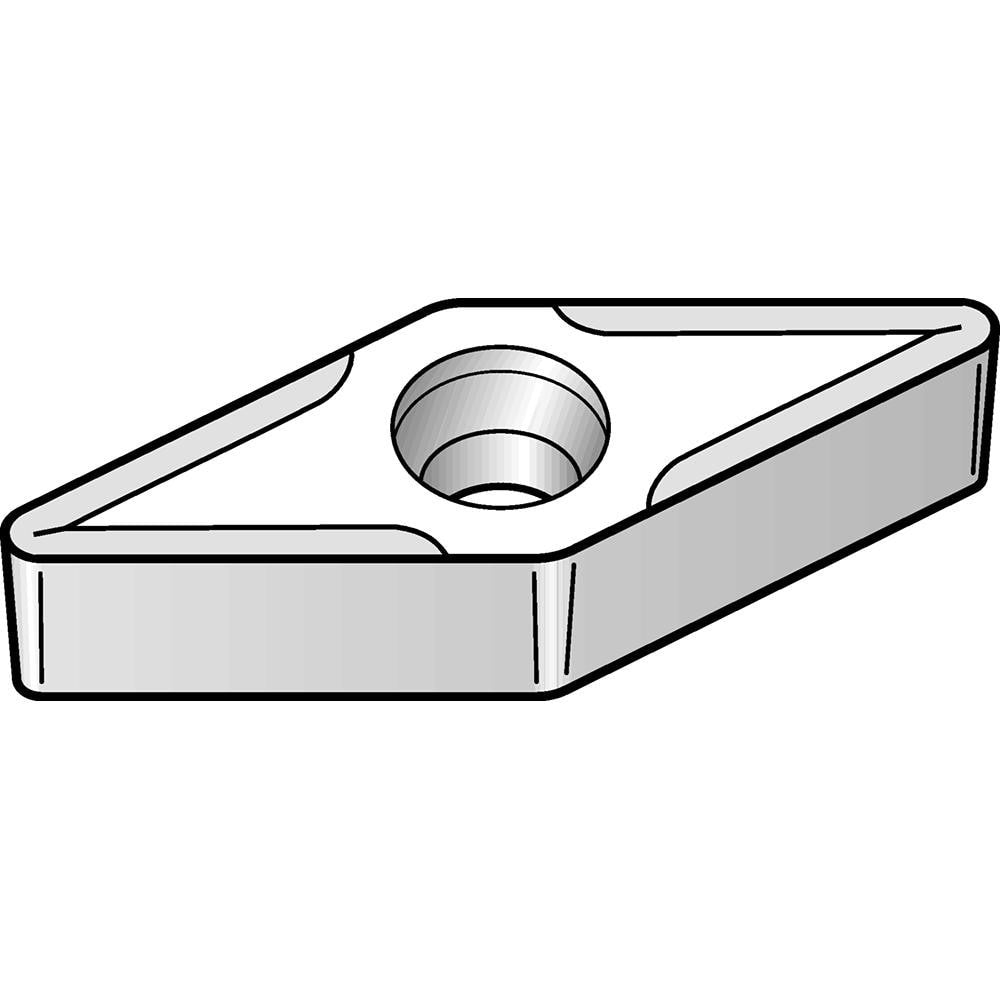

Brand: Widia / Part #: 4169985

Brand: Widia / Part #: 4169985


Item #: 93316677
Brand: Widia
Model #: 4169985

Product Specifications

Insert Style VBMT
Insert Shape Code V
Insert Size Code 333
Insert Shape Diamond
Coating/Finish TiCN; TiN; ZrCN; Al2O3
Manufacturer Grade WP15CT
Corner Radius (Decimal Inch) 0.0472
Insert Material Carbide
Hole Diameter (Decimal Inch) 0.1732
Maximum Depth of Cut (Decimal Inch) 0.3269
Inscribed Circle (Decimal Inch) 0.3750
Insert Holding Method Screw
Insert Hand Neutral
Insert Thickness (Decimal Inch) 0.1875
Clearance Code B
Tolerance Code M
Included Angle 35.00
Relief Angle 5.000
Series VBMT
Coating Process MTCVD
Rake Positive
Wiper Edge No
Insert Length (Decimal Inch) 0.6538
Number Of Cutting Edges 2
Primary Workpiece Material Steel
Primary Workpiece Material Code P
Secondary Workpiece Material Cast Iron
Secondary Workpiece Material Code K
Ansi Code VBMT333
Iso Code VBMT160412
Manufacturers Catalog Number VBMT333
Cutting Direction Right Hand
Coating Classification Multi-Layered CVD
Chip Breaker None
Style VBMT
Width (Decimal Inch - 4 Decimals) 0.3750
Multi-Use Tool Yes
Full Radius No
Multi-Use Application External Turning; Internal Turning
$10.60
