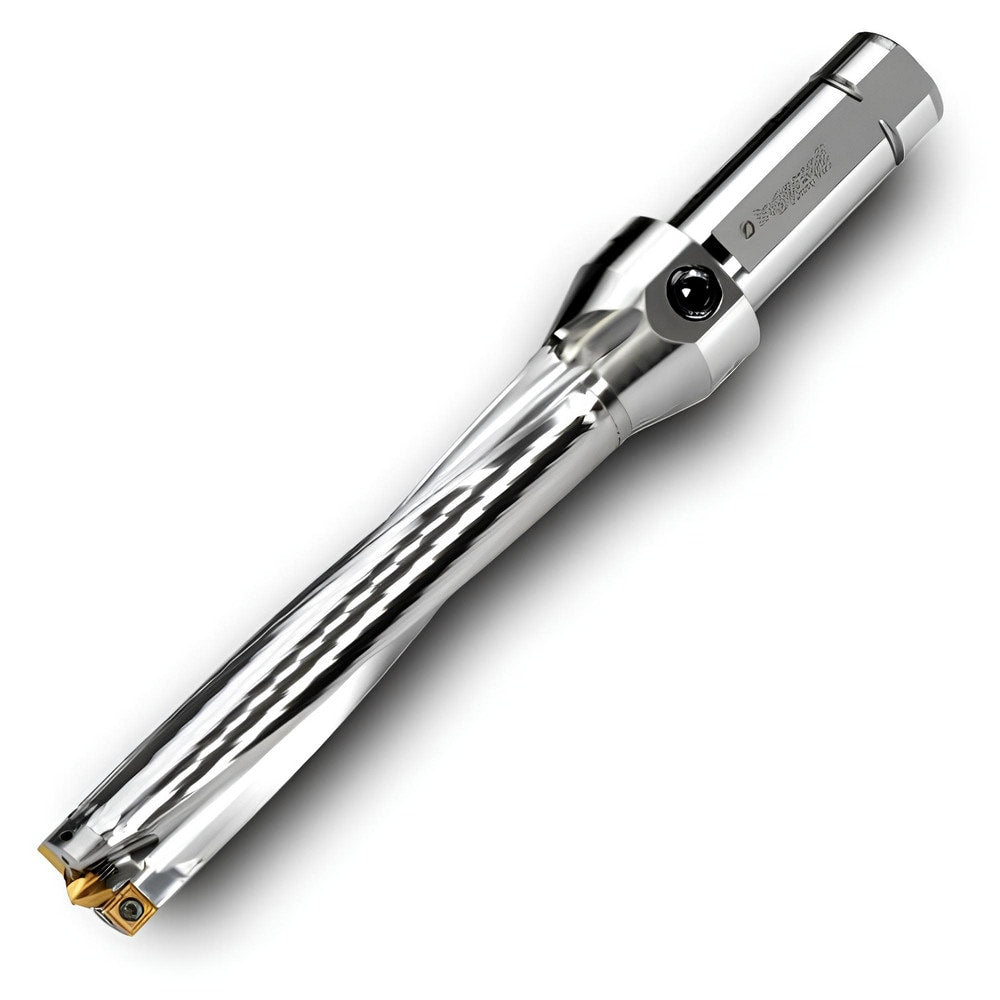

Brand: Ingersoll Cutting Tools / Part #: 6152015
Item #: 31652399
Brand: Ingersoll Cutting Tools
Model #: 6152015
Product Specifications
| Minimum Drill Diameter (Decimal Inch) | 1.1260 |
| Maximum Drill Diameter (Decimal Inch) | 1.1260 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (Decimal Inch) | 5.6300 |
| Shank Type | Flatted |
| Insert Style | TPC; SPGX |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Insert Seat Size | 6; 17 |
| Tool Material | Steel |
| Compatible Insert Style | TPC; SPGX |
| Compatible Insert Size Code | 060205; 1790 |
| Overall Length (Decimal Inch) | 10.8600 |
| Series | CD |
| Toolholder Style | CD |
| Flute Length (Decimal Inch) | 7.7130 |
| Body Length (Decimal Inch) | 10.8600 |
| Shank Length (Decimal Inch) | 3.1600 |
| Tool Application | Drilling |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Cutting Direction | Right Hand |
| Coolant Through | Yes |
| Number Of Flutes | 2 |
