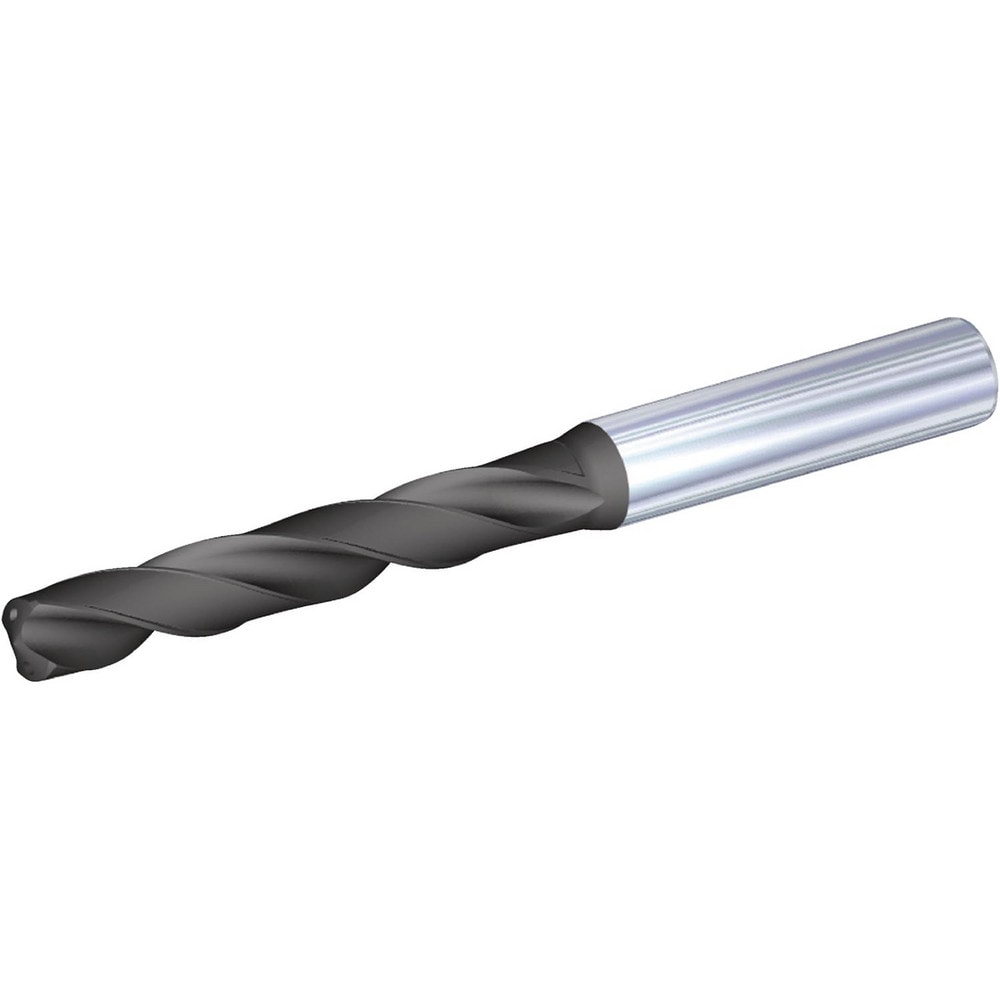

Brand: Widia / Part #: 4158871
Item #: 99826315
Brand: Widia
Model #: 4158871
Product Specifications
| Drill Bit Size (Decimal Inch) | 0.3320 |
| Drill Bit Size (Letter) | Q |
| Drill Bit Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Drill Bit Finish/Coating | AlCrN |
| Drill Point Angle (Degrees) | 140 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Point Type | Standard |
| Coolant Through | Yes |
| Shank Type | Cylindrical |
| Number of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.3937 |
| Overall Length (Decimal Inch) | 4.0551 |
| Flute Length (Decimal Inch) | 2.4016 |
| Series | TDS412 |
| Tool Application | Drilling |
| Flute Length x Diamter Ratio | 6 |
| Flute By Diameter Ratio | 6xD |
| Maximum Drilling Depth (Decimal Inch) | 1.9291 |
| Shank Length (Decimal Inch) | 1.5748 |
| Number of Flats | 2 |
| Drill Point Length (Decimal Inch) | 0.0563 |
| Drill Bit Diameter Tolerance | 0.000200 to 0.000800 in |
| Tool Performance | High Performance |
| Double Margin | Yes |
| Drill Bit Grade | WK15PD |
| Material Grade | WK15PD |
