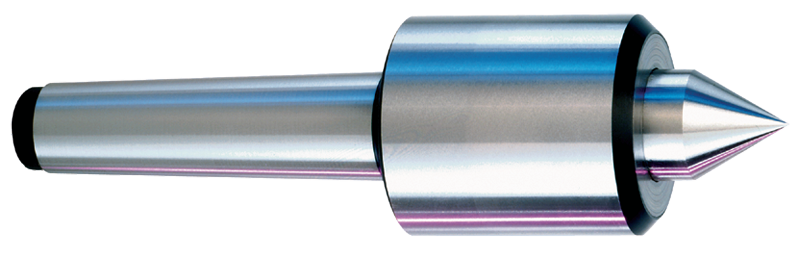

5MT Quad Bearing Standard - Live Center

Item #: HK2610415
Manufacturer: Royal Products
Mfg #: 10415

Technical Specifications:
*Accuracy: .0001 *Brand Name: Royal Products *Head Diameter: 2.45 *Head Length: 2.780 *Max. RPM: 5000 *Mount: 5 MT *Point Diameter: 1.250 *Point Length: 1.47 *Point Style: Standard *Radial Load: 2240 lbs *Style: Quad Bearing *Thrust Load: 2150 lbs *Type: Live Center

Description:
*High-Precision Quad-Bearing Live Centers *Great for grinding and tight tolerance turning. * 0.00005" TIR guaranteed. *Three precision angular contact bearings are secured to the point with a locknut to form a rigid, preloaded assembly. *The point extends into the body where it is supported by a needle roller bearing, which further increases rigidity, reduces point deflection, and dampens vibration. *Bearing life is significantly extended with the exclusive Royal Roto-Shield coolant slinger and upgraded, long-life, spring-loaded seal that is resistant to abrasion, high temperatures and virtually all metalworking fluids. *Low profile head provides excellent tool clearance. *Body and point are hardened for strength and durability.

Shipping Info:
*Actual Weight - 6.4000 *Dimensions - Height: 3.60 Length: 12.4 Width: 3.50
