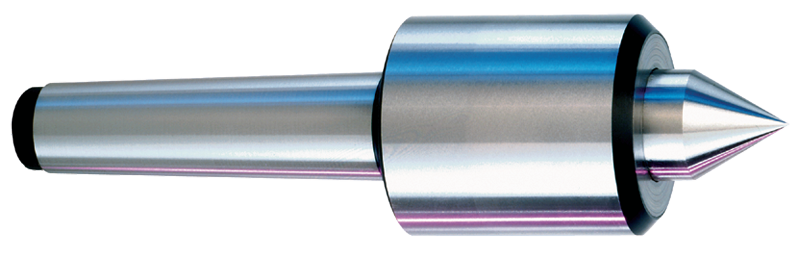

4MT Quad Bearing Standard - Live Center

Item #: HK2610414
Manufacturer: Royal Products
Mfg #: 10414

Technical Specifications:
*Accuracy: .0001 *Brand Name: Royal Products *Head Diameter: 2.45 *Head Length: 2.780 *Max. RPM: 5000 *Mount: 4 MT *Point Diameter: 1.250 *Point Length: 1.47 *Point Style: Standard *Radial Load: 2240 lbs *Style: Quad Bearing *Thrust Load: 2150 lbs *Type: Live Center

Description:
*High Precision Quad Bearing Live Center *Great for grinding and tight tolerance turning *±0.00005" T.I.R. guaranteed *Three precision angular contact bearings are secured to the point with a locknut to form a rigid, preloaded assembly *The point extends into the body where it is supported by a needle roller bearing, which further increases rigidity, reduces point deflection, and dampens vibration *Bearing life is significantly extended with the exclusive Royal Roto-Shield™ coolant slinger and upgraded, long-life, spring-loaded seal that is resistant to abrasion, high temperatures and virtually all metalworking fluids *Low profile head provides excellent tool clearance *Body and point are hardened for strength and durability

Shipping Info:
*Actual Weight - 4.5000 *Dimensions - Height: 3.60 Length: 12.3 Width: 3.60
