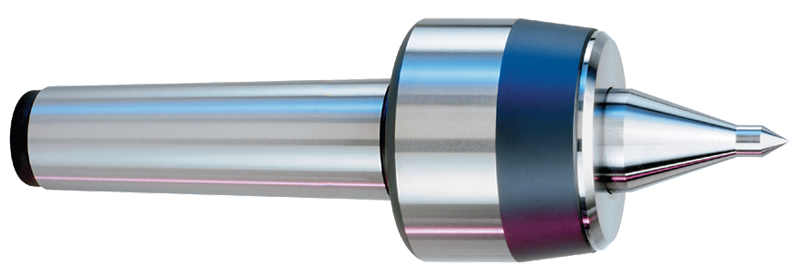

3MT Spindle Type CNC - Live Center

Item #: HK2610213
Manufacturer: Royal Products
Mfg #: 10213

Technical Specifications:
*Accuracy: .0001 *Brand Name: Royal Products *Head Diameter: 2-3/8 *Head Length: 1-3/4 *Max. RPM: 5000 *Mount: 3 MT *Point Diameter: 1 *Point Length: 1-7/8 *Point Style: CNC *Radial Load: 740 lbs *Style: Spindle Type *Thrust Load: 3900 lbs *Tip Diameter: 3/8 *Type: Live Center

Description:
*Heavy Duty Spindle Type Live Center *An excellent heavy-duty live center designed to handle most turning applications *±0.00005" T.I.R guaranteed *Heavy-duty precision bearings provide exceptional thrust and radial load capacities *The substantial point extends into the shank where it is supported by a large needle bearing for increased strength and rigidity *Bearing life is significantly extended with the exclusive Royal Roto-Shield™ coolant slinger and upgraded, long-life, spring-loaded seal that is resistant to abrasion, high temperatures and virtually all metalworking fluids *Body and point are hardened for strength and durability *On the CNC model, the extended point provides great tool clearance

Shipping Info:
*Actual Weight - 2.4580 *Dimensions - Height: 3.25 Length: 9.75 Width: 3.25
