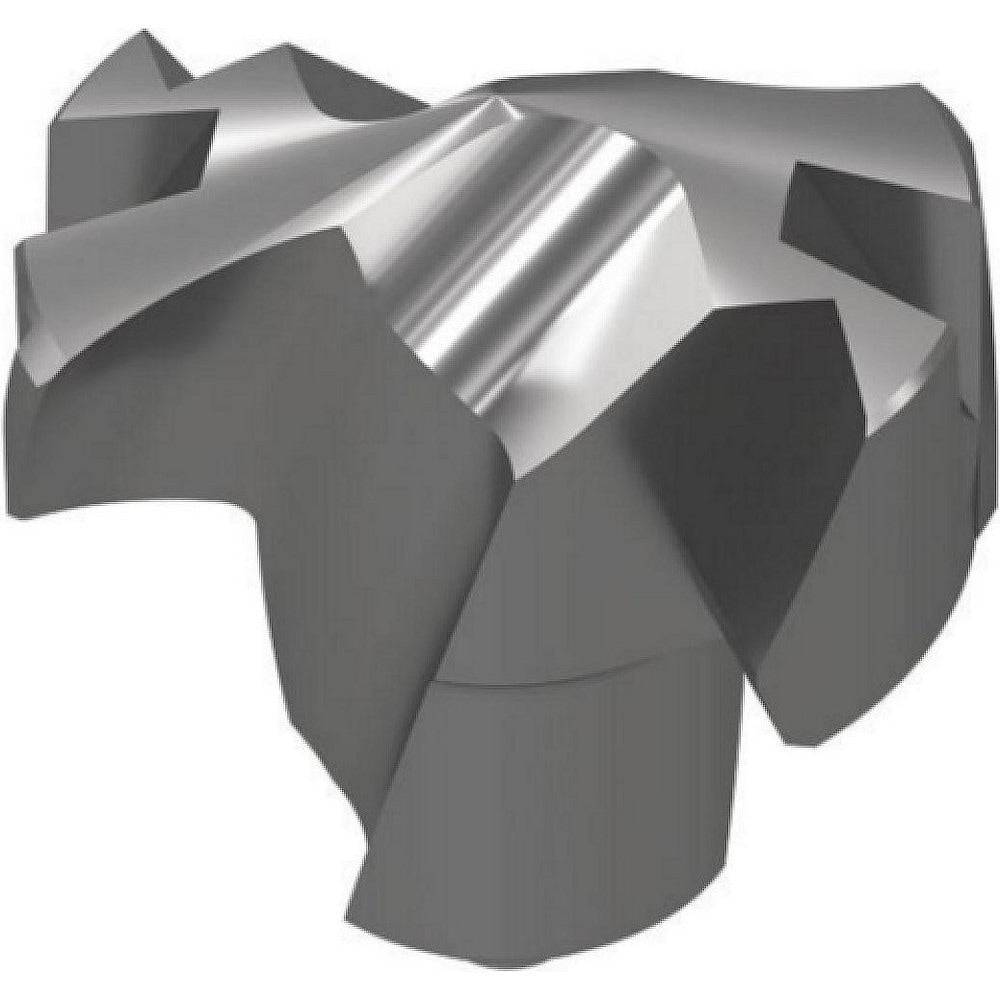

Brand: Widia / Part #: 3850959
Item #: 99215956
Brand: Widia
Model #: 3850959
Product Specifications
| Maximum Drill Diameter (Decimal Inch) | 0.3125 |
| Diameter (Decimal Inch) | 0.3125 |
| Point Angle | 140.00 |
| Diameter (Inch) | 5/16 |
| Tip Material | Solid Carbide |
| Manufacturer Grade | WU25PD |
| Material Grade | Submicron |
| Cutting Direction | Right Hand |
| Series | Top Drill M1 |
| Coating Process | PVD |
| Insert Geometry | UPM |
| Insert Seat Size | W10 |
| Primary Workpiece Material | Cast Iron; Steel |
| Primary Workpiece Material Code | P; K |
| Height (mm) | 8.8500 |
| Minimum Cutting Diameter (Decimal Inch) | 0.3125 |
| Drill Point Angle | 140 |
| Insert Holding Method | Spring Clamp |
| Minimum Cutting Diameter (Inch) | 5/16 |
| ISO Number | TDM0794UPM |
| Coolant Through | No |
| Cutting Diameter (Decimal Inch) | 0.3125 |
| Cutting Diameter (Inch) | 5/16 |
| Coating Classification | PVD |
| Applications | Drilling |
| Coating/Finish | TiAlN |
| Included Angle Degree | 140 |
| Number Of Flutes | 2 |
