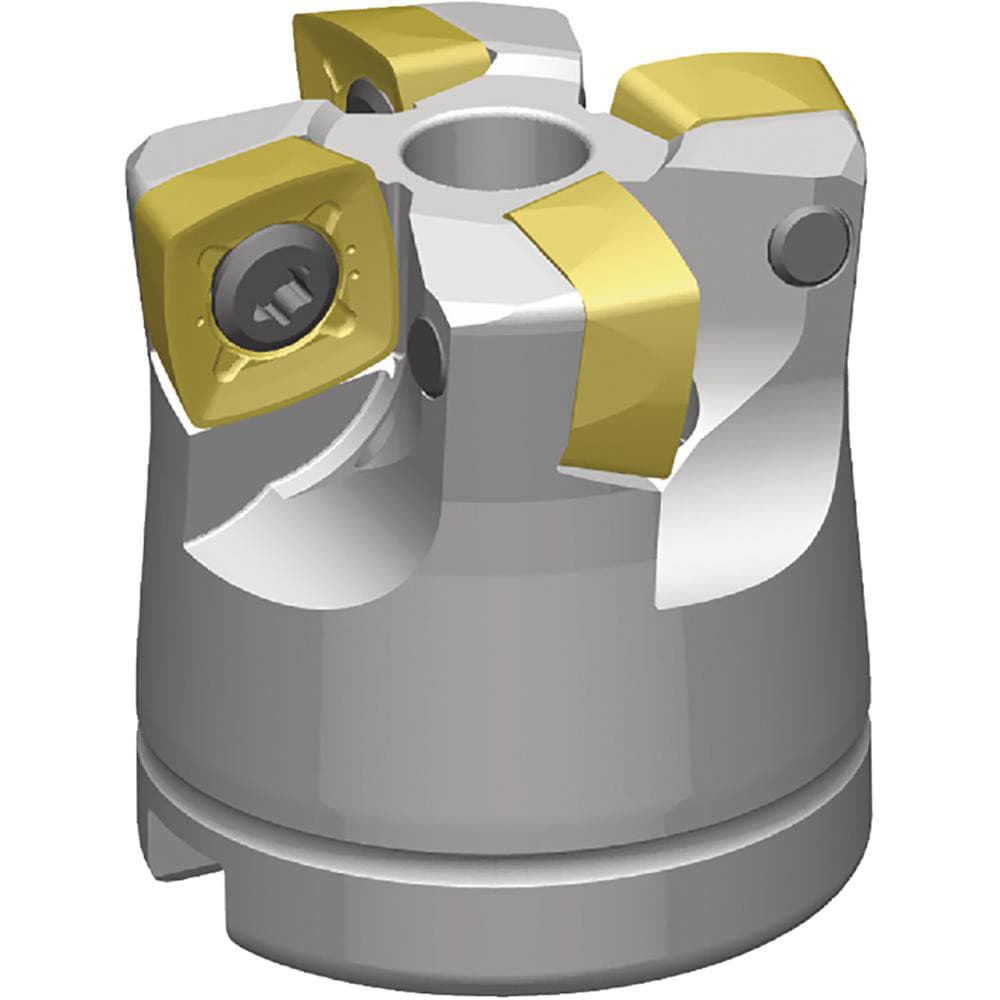

Brand: Widia / Part #: 6596766

Brand: Widia / Part #: 6596766


Item #: 97185011
Brand: Widia
Model #: 6596766

Product Specifications

Minimum Cutting Diameter (Decimal Inch) 1.7836
Maximum Cutting Diameter (Decimal Inch) 2.5000
Maximum Depth of Cut (Decimal Inch) 0.0984
Arbor Hole Diameter (Decimal Inch) 1.0000
Compatible Insert Size Code XD..120512
Maximum Ramping Angle 0.60 degree
Cutter Style VXF-12
Cutting Direction Right Hand
Insert Holding Method Screw
Series VXF-12
Maximum Body Diameter (Decimal Inch) 1.0000
Overall Height (Decimal Inch) 1.5748
Maximum RPM 19500
Tool Application Plunging; Ramping; Face Milling
Tool Performance General Purpose
Primary Workpiece Material Hard Material; Non-Ferrous Metal; Stainless Steel; Cast Iron; Titanium; Steel; Super-Alloy
Primary Workpiece Material Code P; S; H; K; M; N
Number Of Cutter Inserts 5
Number Of Flutes 5
Coolant Through Yes
