Brand: Tritan / Part #: UCPSS211-32SS
Item #: 96743968
Brand: Tritan
Model #: UCPSS211-32SS
Product Specifications

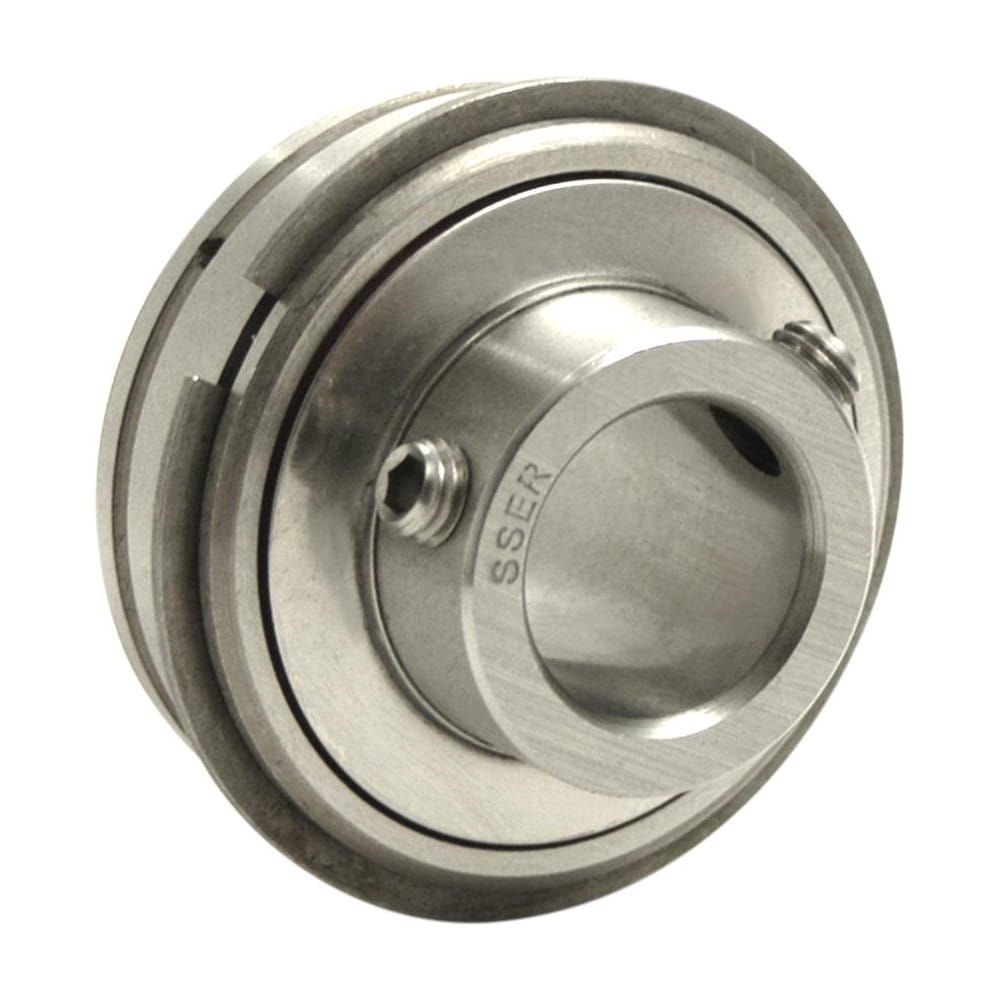

| Bearing Insert Type | Wide Inner Ring |
| Inside Diameter (Inch) | 2 |
| Outside Diameter | 218.0000 |
| Bearing Bore Diameter (Decimal Inch) | 2.0000 |
| Bolt Hole (Center-to-center) | 171 mm |
| Base to Bore Centerline (mm) | 63.50 |
| Bolt Size (Decimal Inch) | 0.6250 |
| Housing Material | Stainless Steel |
| Overall Length (mm) | 218.0000 |
| Overall Width | 126.0000 |
| Overall Height (Mm - 5 Decimals) | 55.60000 |
| Lock Type | Set Screw |
| Static Load Capacity | 5248.00 |
| Number Of Bolts | 2 |
| Dynamic Load Capacity (Lb.) | 8117.000 |
| Maximum RPM | 3300.000 |
| Series | UCPSS |
| Distance Between Mounting Hole Centers | 2-3/16 |
| Distance Between Base And Center | 2-1/2 |
| Insert Material | Stainless Steel |
| Maximum Bore Diameter (Inch) | 2 |
| Flange Height (Decimal Inch) | 4.9600 |
| Shaft Size (mm) | 50.80 |
| Load Capacity (Lb. - 3 Decimals) | 5248.000 |
| Distance Between Mount Hole Centers (mm) | 171.00 |
