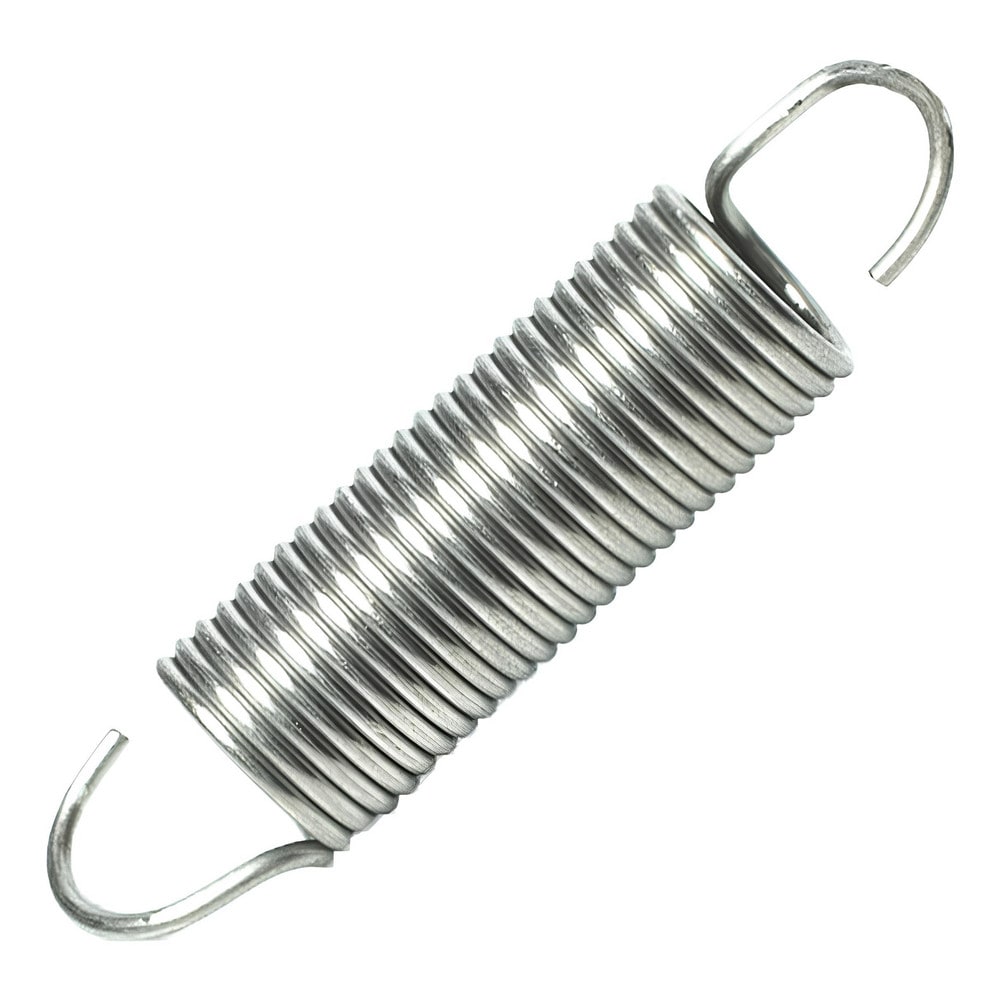

Extension Springs; End Type: Hook; Outside Diameter (Decimal Inch
Item #: 02998391
Brand: Associated Spring Raymond
Model #: MH05000634500S
Product Specifications
| End Type | Hook |
| Outside Diameter (Decimal Inch - 4 Decimals) | 0.5000 |
| Spring Rate | 4.0000 |
| Material | Stainless Steel |
| Overall Length (Decimal Inch) | 4.6260 |
| Initial Tension (Lb.) | 1.42 |
| Maximum Extended Length (Decimal Inch) | 8.0600 |
| Free Length (Inch) | 4-1/2 |
| Inside Hook Length (Fractional Inch) | 4-1/2 |
| Standards | AMS 5688; ASTM A313 |
| Finish/Coating | Uncoated |
| Wire Size (Decimal Inch) | 0.0630 |
| UNSPSC Code | 31161907 |
