Brand: Widia / Part #: 2968584
Item #: 99730939
Brand: Widia
Model #: 2968584
Product Specifications
| Thread Type | External |
| Hand of Holder | Right Hand |
| Shank Width/Diameter (Decimal Inch) | 0.7500 |
| Compatible Insert Size Code | 3 |
| Shank Width/Diameter (Inch) | 3/4 |
| Toolholder Style | LSASR |
| Insert Compatibility | LT16ER |
| Coolant Entry Style Code | 0-Without Coolant |
| Insert Holding Method | Clamp |
| Shank Height (Decimal Inch) | 0.7500 |
| Shank Length (Decimal Inch) | 3.8000 |
| Overall Length (Inch) | 5 |
| Overall Length (Decimal Inch) | 5.0000 |
| Series | LT |
| Multi-use Tool | No |

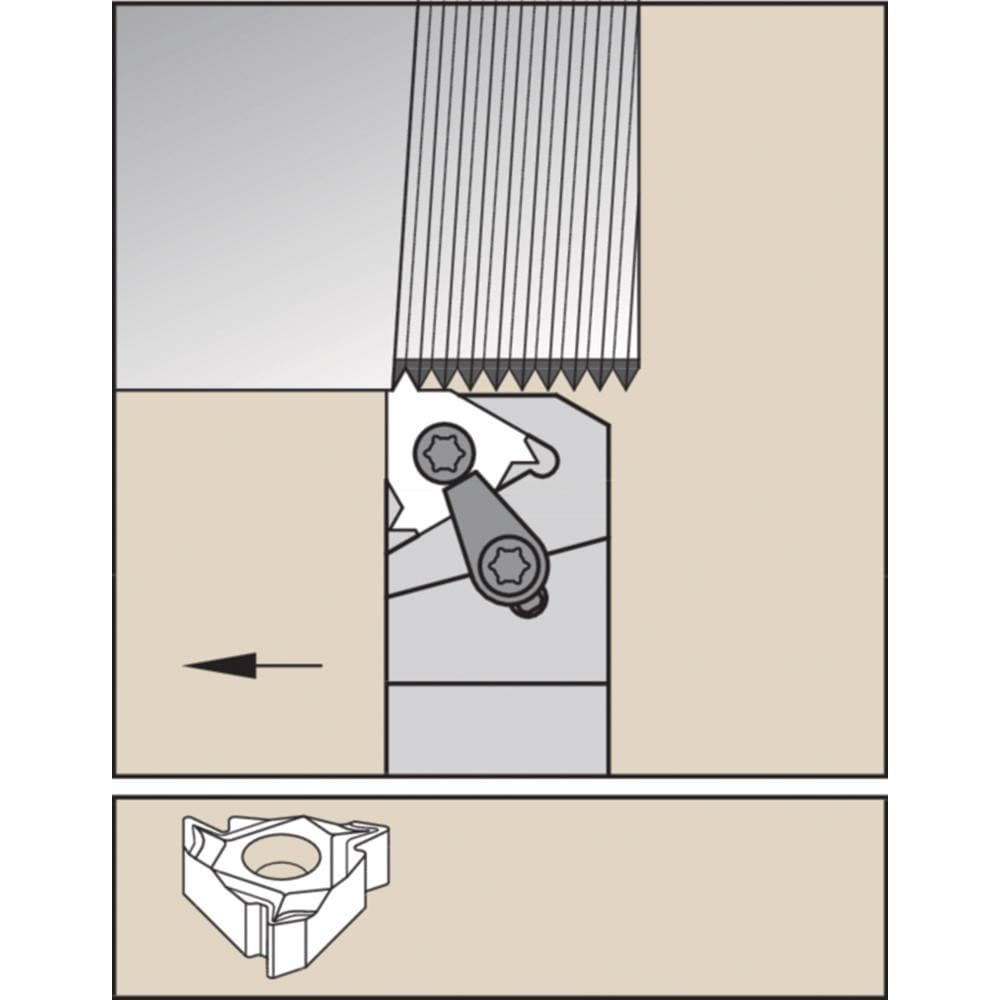

| Cutting Tool Application | Threading |
| Head Length (Decimal Inch) | 1.2000 |
| Maximum Depth of Cut (Decimal Inch) | 0.1875 |
| Adjustable Overhang | Yes |
| Back of Bar to Cutting Edge (Inch) | 3/4 |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.7500 |
| Center to Cutting Edge (Decimal Inch) | 0.3750 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
| Insert Inscribed Circle (Inch) | 3/8 |
| Insert Inscribed Circle (mm) | 9.53 |
| Primary Workpiece Material | Non-Ferrous Metal; Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; K; M; N |
| Toolholder Material | Steel |
| Manufacturers Catalog Number | LSASR123 |
| Style | LT |
| Coolant Through | No |
