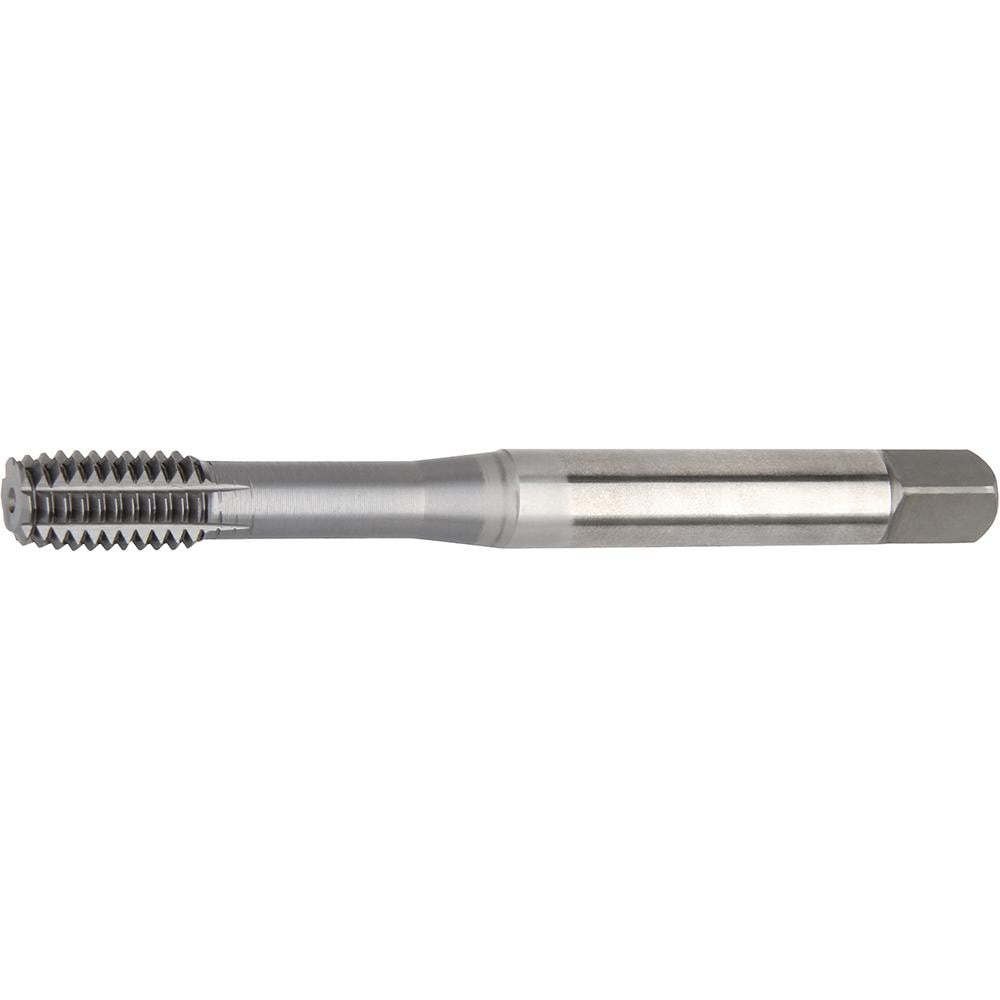

Brand: Widia / Part #: 5945045
Item #: 98993538
Brand: Widia
Model #: 5945045
Product Specifications
| Thread Size (Inch) | 1/2-13 |
| Overall Length (Decimal Inch) | 4.3300 |
| Chamfer | Semi-Bottoming |
| Coating/Finish | TiCN |
| Thread Limit | H5 |
| Thread Pitch (Decimal Inch) | 0.0769 |
| Thread Standard | UNC |
| Thread Direction | Right Hand |
| Material | High Speed Steel |
| Thread Length (Decimal Inch) | 0.7900 |
| Thread Depth | 1.8500 |
| Thread Depth (Decimal Inch) | 1.8500 |
| Shank Diameter (Decimal Inch) | 0.3670 |
| Neck Length (Decimal Inch) | 1.0600 |
| Square Length (Decimal Inch) | 0.4400 |
| Material Application | Stainless Steel |
| Application | Metal |
| Series | GT25 |
| Tap Type | Blind |
| Tapping Depth (Decimal Inch) | 1.8500 |
| Shank Length (Decimal Inch) | 2.4800 |
| Square Size (Decimal Inch) | 0.2730 |
| Threads per Inch | 13 |
| Class Of Fit | 2B |
| Coolant Through | Yes |
