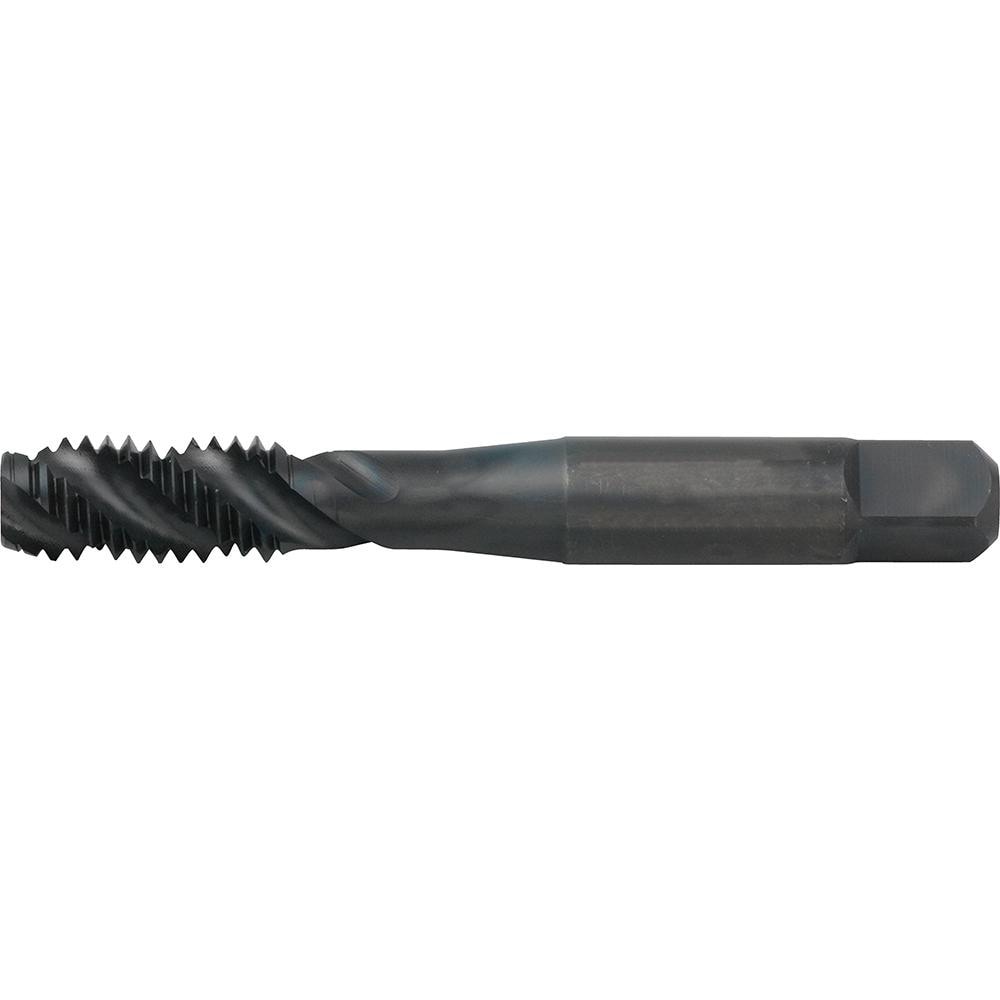

Brand: Widia / Part #: 5364729
Item #: 97451967
Brand: Widia
Model #: 5364729
Product Specifications
| Thread Size (Inch) | 1-12 |
| Chamfer | Modified Bottoming |
| Thread Limit | H4 |
| Class Of Fit | 3B |
| Number Of Flutes | 4 |
| Material | High Speed Steel |
| Threads per Inch | 12 |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Coating/Finish | Oxide |
| Coolant Through | No |
| Thread Length (Decimal Inch) | 1.5000 |
| Overall Length (Decimal Inch) | 5.1300 |
| Thread Depth (Decimal Inch) | 2.5800 |
| Thread Pitch (Decimal Inch) | 0.0833 |
| Thread Standard | UNF |
| Material Grade | WP49EG |
| Shank Diameter (Decimal Inch) | 0.8000 |
| Square Size (Decimal Inch) | 0.5970 |
| Material Application | Stainless Steel; Cast Iron; Steel |
| Series | VTSFT |
