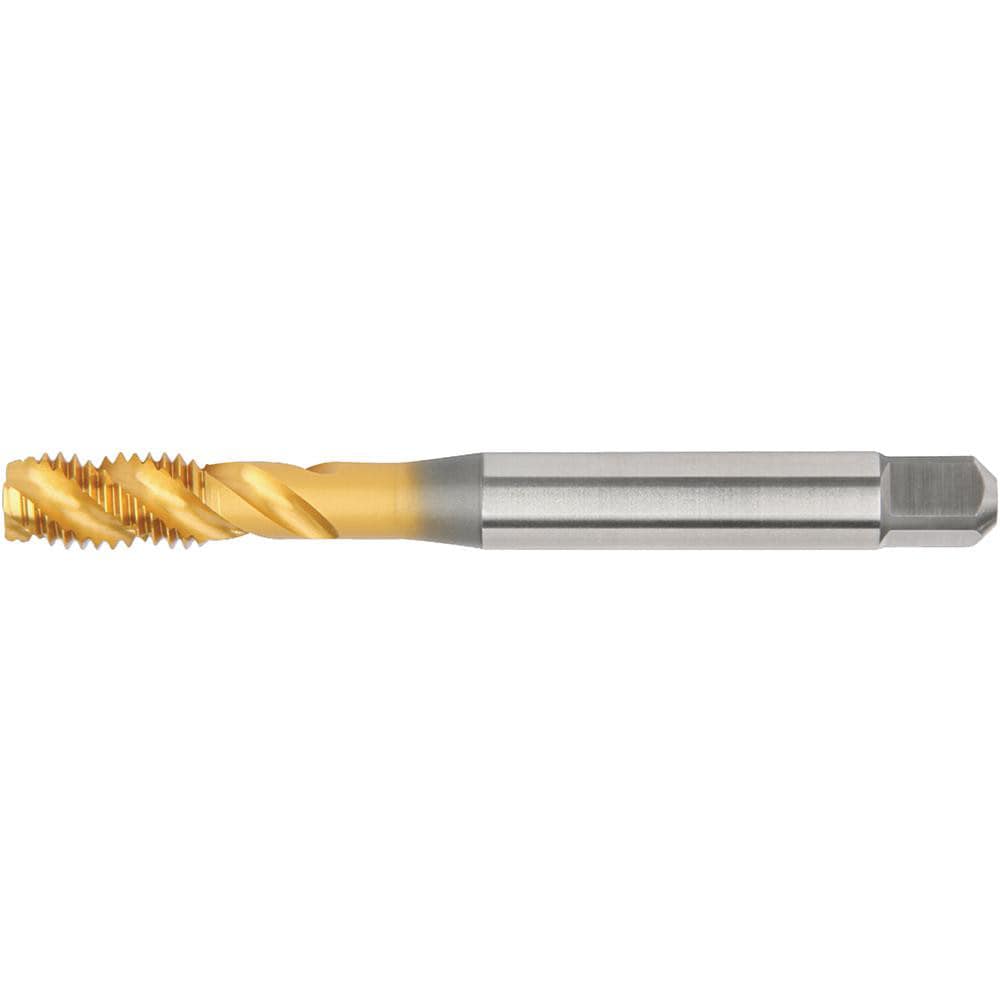

Brand: Widia / Part #: 6172729
Item #: 97468177
Brand: Widia
Model #: 6172729
Product Specifications
Thread Size (mm) | M30x3.5 |
Chamfer | Bottoming |
Thread Limit | D9 |
Class Of Fit | 6H |
Number Of Flutes | 4 |
Material | High Speed Steel |
Threads per Inch | 7 |
Thread Direction | Right Hand |
Flute Direction | Right Hand |
Coating/Finish | Black Oxide |
Thread Depth (mm) | 87.00 |
Coolant Through | No |
Thread Length (mm) | 35.00 |
Overall Length (mm) | 180.0000 |
Thread Pitch (mm) | 3.50 |
Thread Standard | Metric |
Material Grade | WP49EG |
Shank Diameter (mm) | 22.0000 |
Square Length (mm) | 21.00 |
Square Size (mm) | 18.00 |
Material Application | Stainless Steel; Cast Iron; Steel |
Series | VTSFT-TC |
