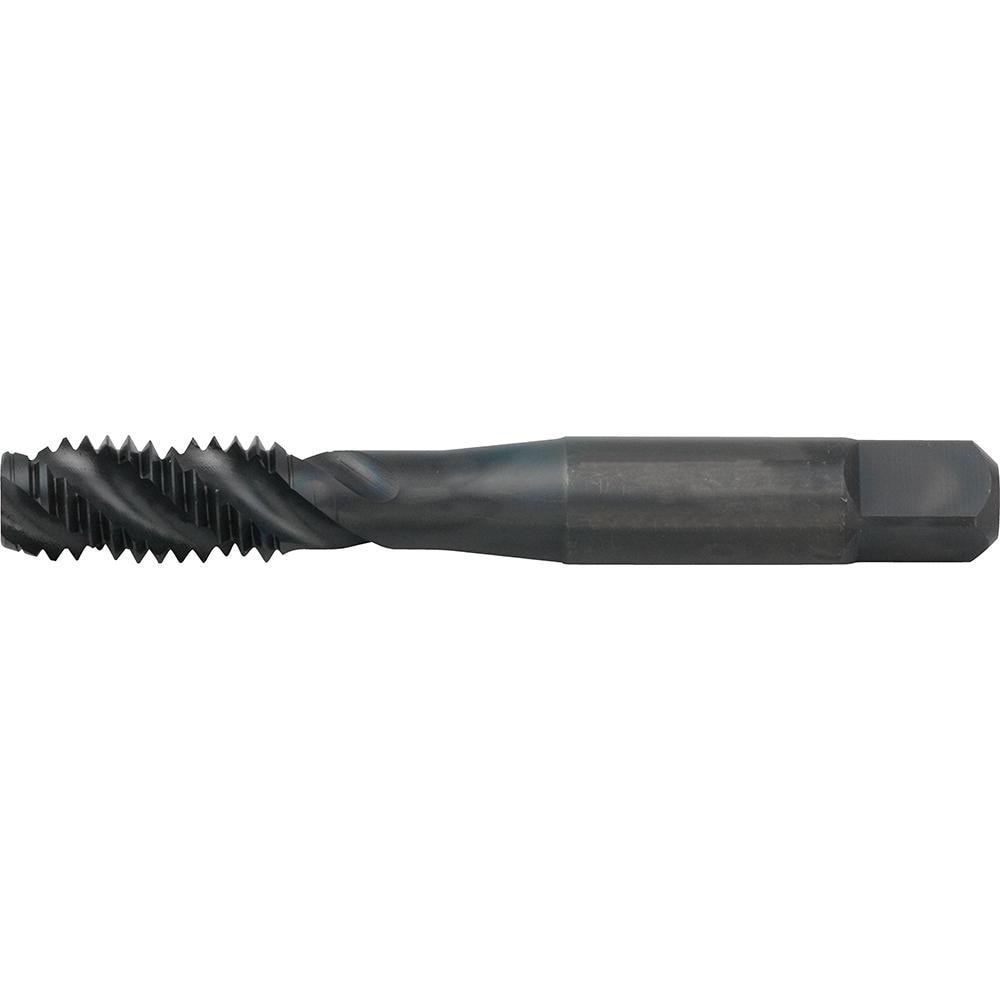

Brand: Widia / Part #: 5364716
Item #: 99889404
Brand: Widia
Model #: 5364716
Product Specifications
| Thread Size (Inch) | 7/8-9 |
| Chamfer | Modified Bottoming |
| Thread Limit | H4 |
| Class Of Fit | 3B |
| Number Of Flutes | 4 |
| Material | High Speed Steel |
| Threads per Inch | 9 |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Coating/Finish | TiCN |
| Coolant Through | No |
| Thread Length (Decimal Inch) | 1.3400 |
| Overall Length (Decimal Inch) | 4.6900 |
| Thread Depth (Decimal Inch) | 2.3000 |
| Thread Pitch (Decimal Inch) | 0.1111 |
| Thread Standard | UNC |
| Material Grade | WP42EG |
| Shank Diameter (Decimal Inch) | 0.6970 |
| Square Size (Decimal Inch) | 0.5200 |
| Material Application | Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel |
| Series | VTSFT |
