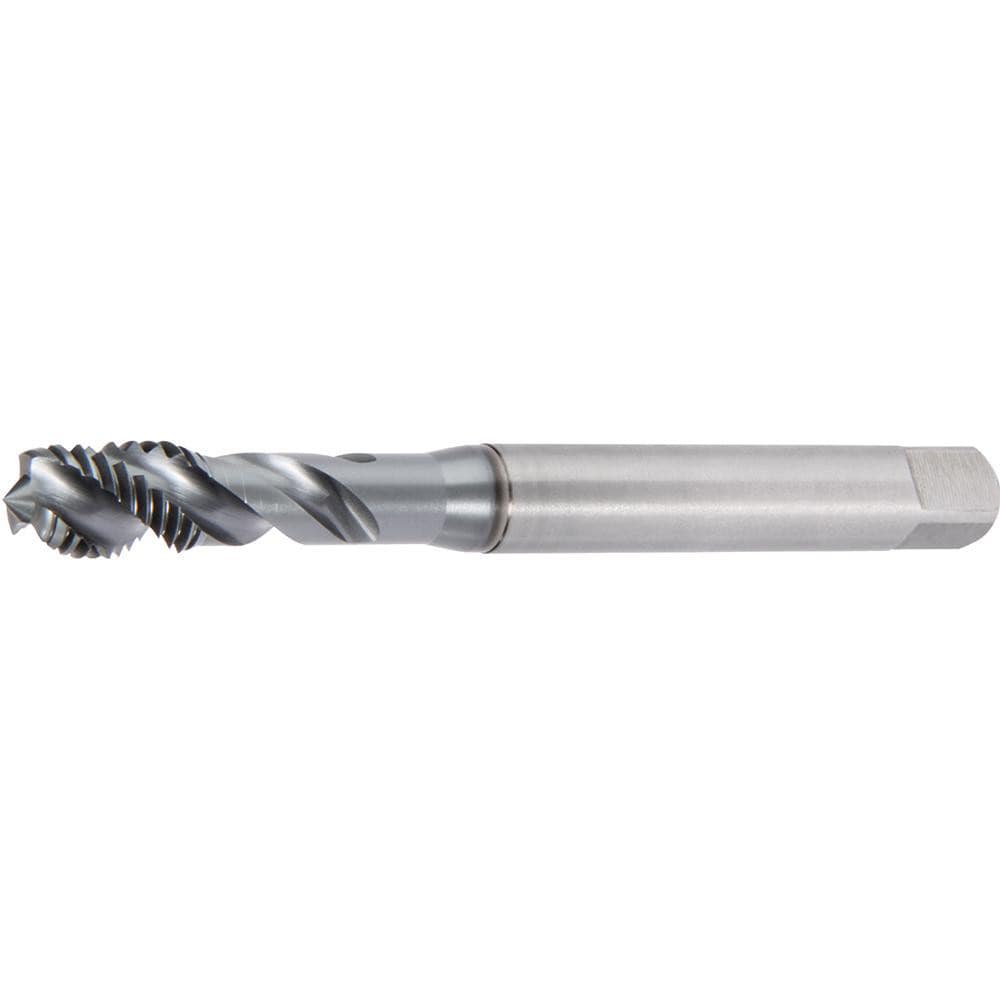

Brand: Widia / Part #: 4158775
Item #: 97526123
Brand: Widia
Model #: 4158775
Product Specifications
| Thread Size (mm) | M12x1.25 |
| Chamfer | Modified Bottoming |
| Thread Limit | D5 |
| Class Of Fit | 6H |
| Number Of Flutes | 4 |
| Material | Powdered Metal |
| Threads per Inch | 20 |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Coating/Finish | MoS2; TiAlN |
| Thread Depth (mm) | 15.00 |
| Coolant Through | No |
| Thread Length (mm) | 15.00 |
| Overall Length (mm) | 100.0000 |
| Thread Pitch (mm) | 1.25 |
| Thread Standard | Metric |
| Material Grade | WH36MG |
| Shank Diameter (mm) | 9.0000 |
| Square Length (mm) | 10.00 |
| Square Size (mm) | 7.00 |
| Material Application | Steel |
| Series | GT04 |
