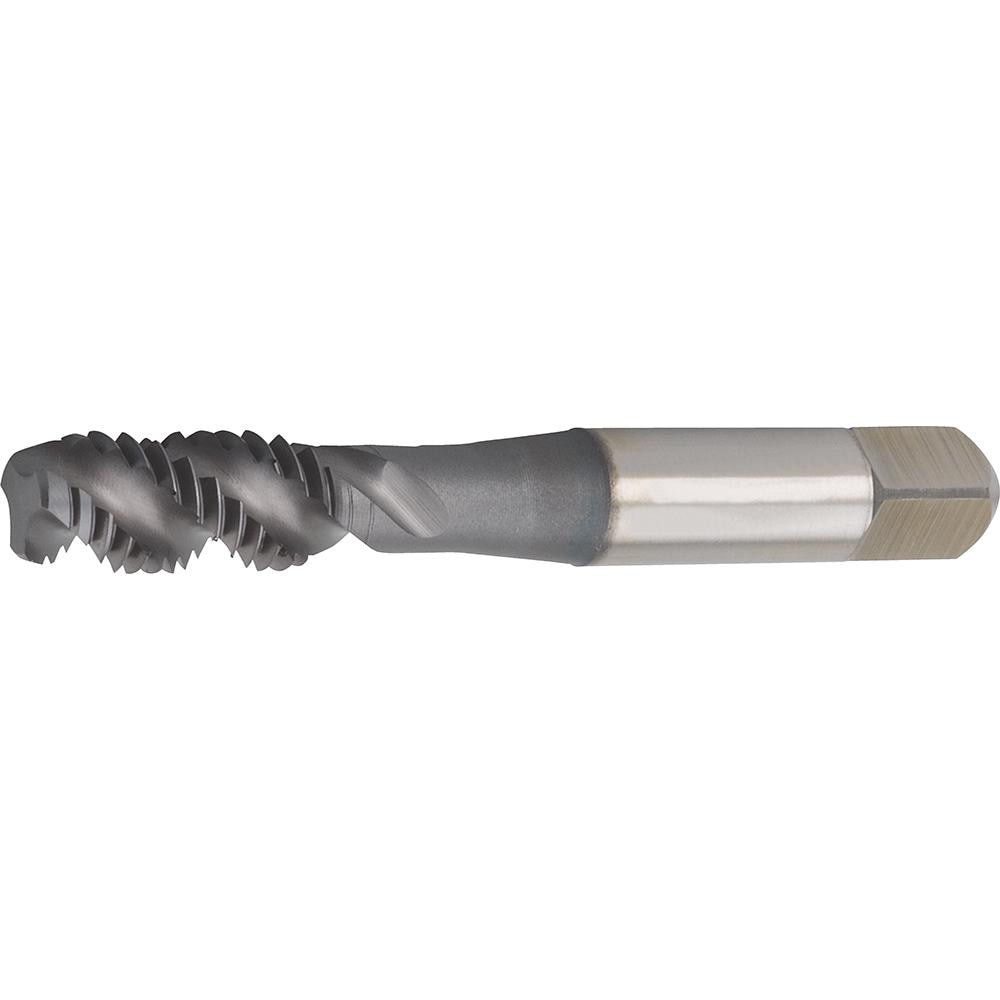

Brand: Widia / Part #: 5887054
Item #: 11986171
Brand: Widia
Model #: 5887054
Product Specifications
| Thread Size (Inch) | 3/8-24 |
| Chamfer | Modified Bottoming |
| Thread Limit | H3 |
| Class Of Fit | 3B |
| Number Of Flutes | 3 |
| Material | High Speed Steel |
| Threads per Inch | 24 |
| Thread Direction | Right Hand |
| Flute Direction | Right Hand |
| Coating/Finish | TiCN |
| Coolant Through | No |
| Thread Length (Decimal Inch) | 0.7400 |
| Overall Length (Decimal Inch) | 2.9200 |
| Thread Depth (Decimal Inch) | 1.2500 |
| Thread Pitch (Decimal Inch) | 0.0417 |
| Thread Standard | UNF |
| Material Grade | WP42EG |
| Shank Diameter (Decimal Inch) | 0.3810 |
| Square Size (Decimal Inch) | 0.2840 |
| Material Application | Non-Ferrous Metal; Stainless Steel; Cast Iron; Steel |
| Series | VTSFT-TC |
