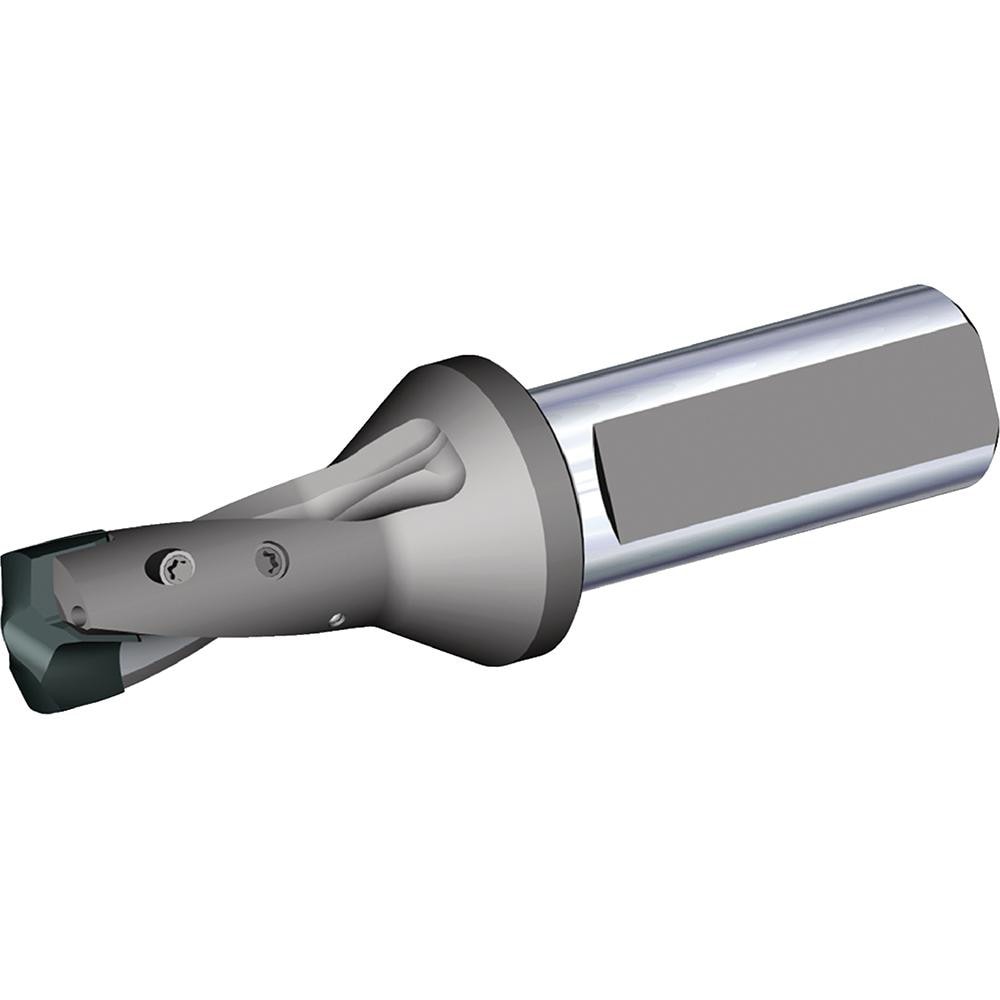

Brand: Widia / Part #: 6680914

Brand: Widia / Part #: 6680914


Item #: 90229329
Brand: Widia
Model #: 6680914

Product Specifications

Minimum Drill Diameter (Decimal Inch) 0.6693
Maximum Drill Diameter (Decimal Inch) 0.7086
Drill Depth by Diameter Ratio 1.5xD
Maximum Drill Depth (Fractional Inch) 1-1/16
Maximum Drill Depth (Decimal Inch) 1.0630
Shank Type Flatted
Insert Style TDMX
Shank Diameter (Inch) 3/4
Shank Diameter (Decimal Inch) 0.7500
Insert Seat Size B
Tool Material Steel
Compatible Insert Style TDMX
Compatible Insert Size Code B
Overall Length (Decimal Inch) 4.2913
Series TDMX
Toolholder Style TDMX
Flute Length (Decimal Inch) 1.0630
Body Length (Decimal Inch) 1.8425
Shank Length (Decimal Inch) 1.9685
Tool Application Drilling
Tool Performance General Purpose
Primary Workpiece Material Universal
Coolant Hole Diameter (Decimal Inch) 0.1378
Cutting Direction Right Hand
Coolant Through Yes
Number Of Flutes 2
$259.36
