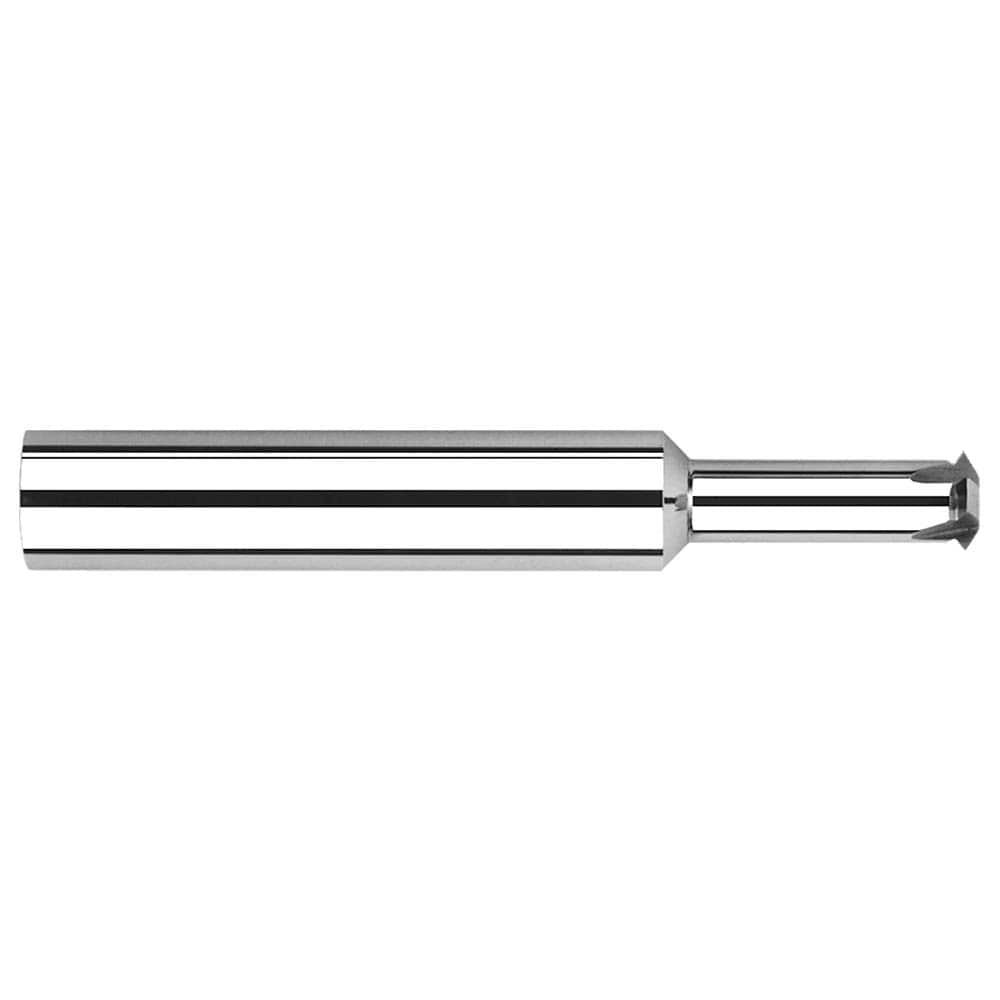

Brand: Harvey Tool / Part #: 772906

Brand: Harvey Tool / Part #: 772906


Item #: 82498759
Brand: Harvey Tool
Model #: 772906

Product Specifications

Maximum Threads Per Inch 64
Minimum Pitch (Decimal Inch) 0.0179
Minimum Threads Per Inch 56
Maximum Pitch (Decimal Inch) 0.0156
Material Solid Carbide
Thread Type Internal/External
Thread Size #2-56 - #2-64
Thread Depth (Decimal Inch) 0.1250
Shank Diameter (Inch) 1/8
Cutting Diameter (Decimal Inch) 0.0640
Minimum Nominal Diameter (Inch) #2
Overall Length (Decimal Inch) 1.5000
Overall Length (Inch) 1-1/2
Neck Diameter (Decimal Inch) 0.0380
Shank Length (Decimal Inch) 1.3750
Series Thread Milling Cutters - Single Form - UN Threads
Thread Standard UN 60 Degree
Number Of Flutes 2
Coating/Finish Uncoated
$72.37
