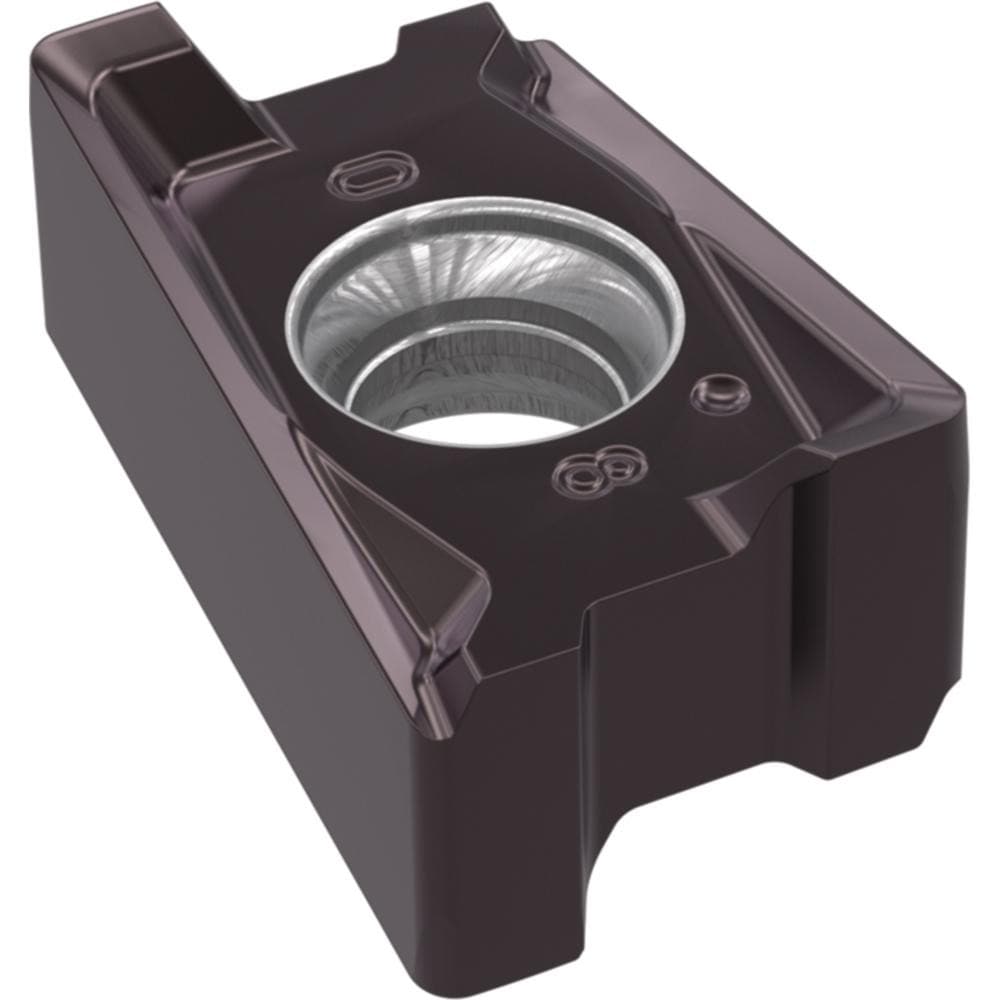

Brand: Widia / Part #: 5710529
Item #: 16140469
Brand: Widia
Model #: 5710529
Product Specifications
| Insert Style | XNGU |
| Insert Size Code | 15T6 |
| Insert Size | 15 |
| Insert Material | Carbide |
| Manufacturer Grade | WU35PM |
| Inscribed Circle (Decimal Inch) | 0.3940 |
| Inscribed Circle (mm) | 10.00 |
| Corner Radius (Decimal Inch) | 0.0314 |
| Corner Radius (Inch) | 1/32 |
| Insert Hand | Right Hand |
| Relief Angle | 0.000 |
| Series | VSM490-15 |
| Coating Process | PVD |
| Hole Diameter (Decimal Inch) | 0.1830 |
| Maximum Depth of Cut (Decimal Inch) | 0.6020 |
| Number Of Cutting Edges | 4 |
| Insert Shape | Rectangle |
| Rake | Negative |
| Primary Workpiece Material | Stainless Steel; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; M |
| Ansi Code | XNGU1502SRMM |
| Iso Code | XNGU15T608SRMM |
| Manufacturers Catalog Number | XNGU1502SRMM |
| Cutter Series Compatibility | VSM490 XN15 |
| Chip Breaker | MM |
| Cutting Direction | Right Hand |
| Material Application | High-Temperature Alloy; Stainless Steel; Steel |
| Shape | Rectangle |
| Insert Holding Method | Screw |
| Coating Classification | PVD |
| Single or Double Sided Insert | Double |
| Coating/Finish | AlTiN |
| Included Angle Degree | 90 |
| Width (Decimal Inch - 4 Decimals) | 0.3940 |
| Width (Mm - 2 Decimals) | 10.00 |
| Thickness (Decimal Inch - 4 Decimals) | 0.2710 |
| Multi-Use Tool | Yes |
| Length (Decimal Inch - 4 Decimals) | 0.6380 |
