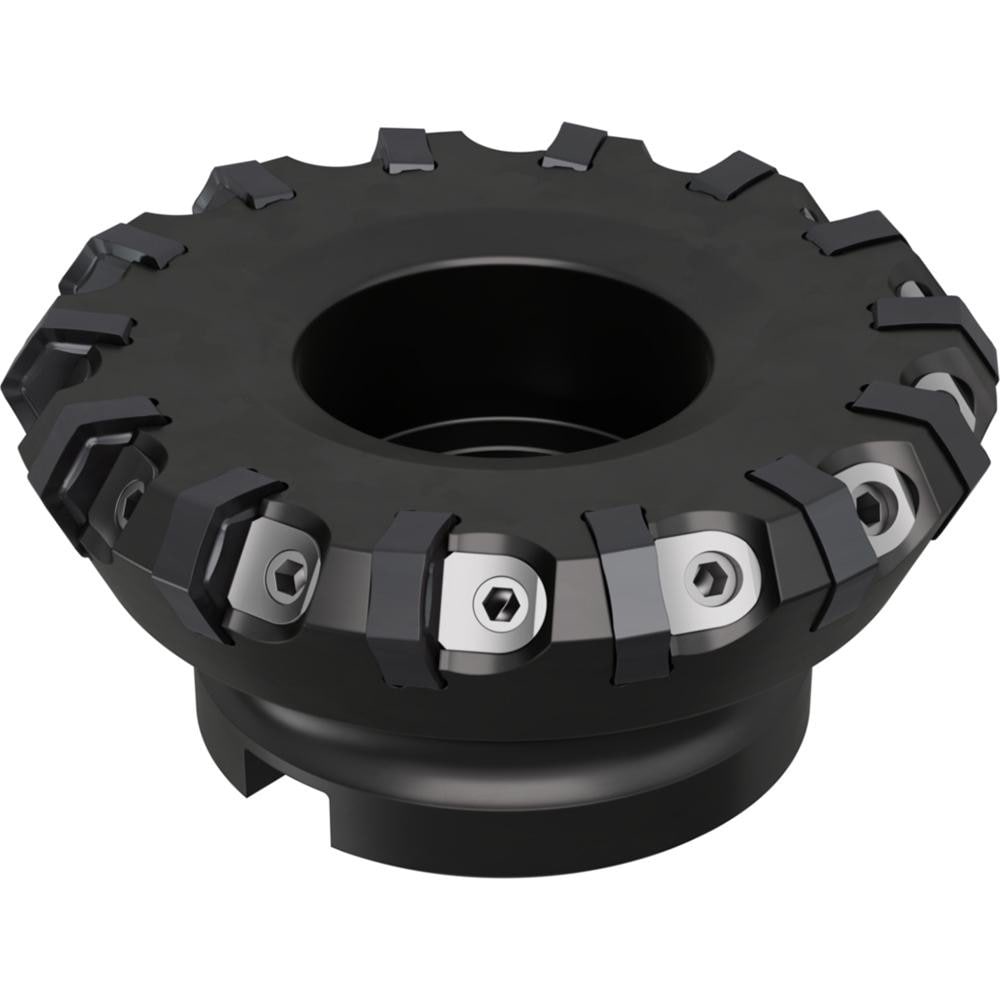

Brand: Widia / Part #: 6175727
Item #: 97983779
Brand: Widia
Model #: 6175727
Product Specifications
| Minimum Cutting Diameter (mm) | 200.00 |
| Maximum Cutting Diameter (mm) | 211.80 |
| Maximum Depth of Cut (mm) | 7.50 |
| Arbor Hole Diameter (mm) | 60.00 |
| Lead Angle | 56.000 |
| Compatible Insert Size Code | HN..1107 |
| Cutter Style | M1200 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Wedge |
| Rake | Negative |
| Series | M1200 |
| Hub Diameter (mm) | 130.000 |
| Overall Height (Mm - 5 Decimals) | 63.00000 |
| Maximum Body Diameter (mm) | 208.82 |
| Maximum RPM | 1800.000 |
| Tool Application | Chamfering; Facing; Milling |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; K; M |
| Complete Insert Compatibility | HNMF110710ZNSNMM |
| Toolholder Material | Steel |
| Number Of Cutter Inserts | 22 |
| Coolant Through | No |
| Number Of Flutes | 22 |
