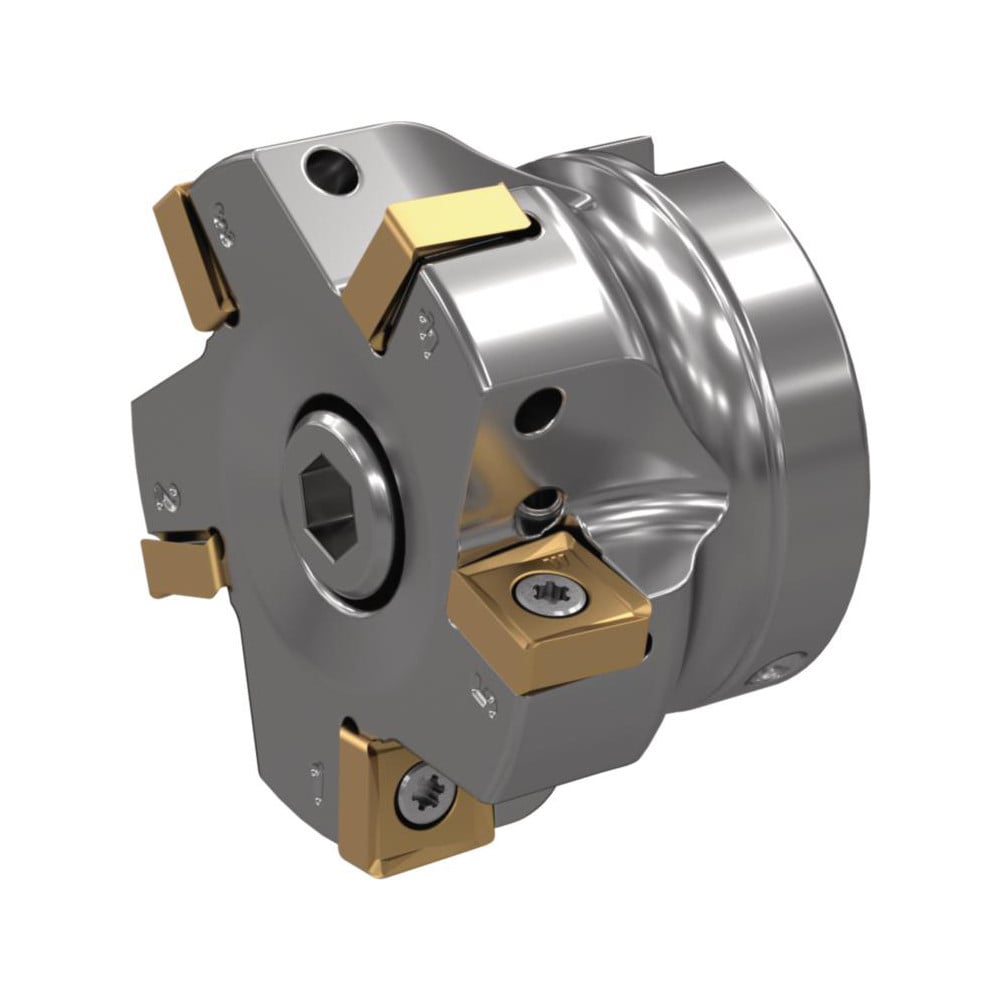

Brand: Widia / Part #: 6596126
Item #: 09785361
Brand: Widia
Model #: 6596126
Product Specifications
| Minimum Cutting Diameter (mm) | 200.00 |
| Maximum Cutting Diameter (mm) | 200.00 |
| Maximum Depth of Cut (mm) | 9.80 |
| Arbor Hole Diameter (mm) | 60.00 |
| Compatible Insert Size Code | SNHX1204.. |
| Maximum Ramping Angle | 0 |
| Cutter Style | VSM |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Lead Angle | 90 |
| Rake | Negative (Radial); Positive (Axial) |
| Rake Angle | -13.000 |
| Series | VSM890 |
| Maximum Body Diameter (mm) | 197.50 |
| Overall Height (Mm - 5 Decimals) | 63.00000 |
| Keyway Width (mm) | 25.80 |
| Hub Diameter (mm) | 130.000 |
| Maximum RPM | 10800.000 |
| Tool Application | Milling; Slotting |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Number of Adjustable Pockets | 0 |
| ISO Number | VSM890D200Z14S60SN12 |
| Complete Insert Compatibility | SNHX120408PNERMM |
| Toolholder Material | Steel |
| Manufacturers Catalog Number | VSM890D200Z14S60SN12 |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 14 |
| Number Of Flutes | 14 |
