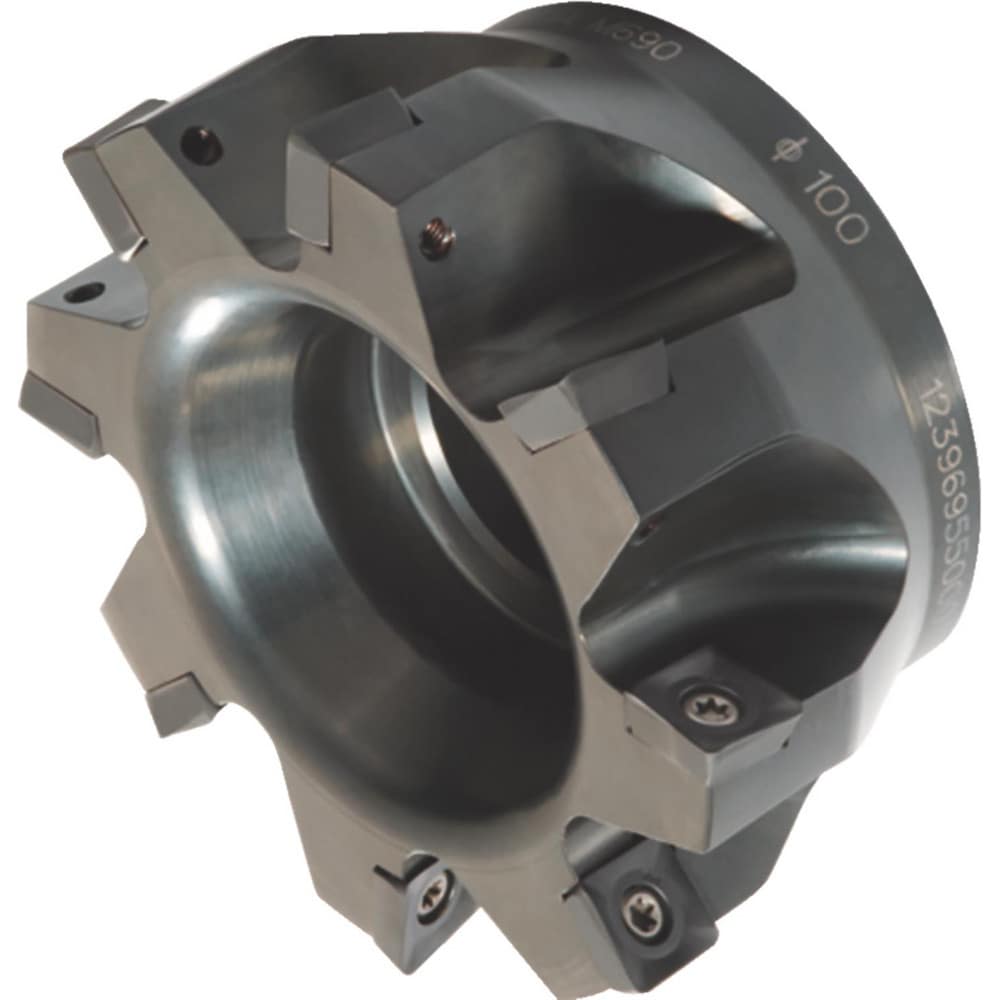

Brand: Widia / Part #: 6738414
Item #: 09888249
Brand: Widia
Model #: 6738414
Product Specifications
| Minimum Cutting Diameter (mm) | 80.00 |
| Maximum Cutting Diameter (mm) | 80.00 |
| Maximum Depth of Cut (mm) | 10.00 |
| Arbor Hole Diameter (mm) | 27.00 |
| Compatible Insert Size Code | SD..1204.. |
| Maximum Ramping Angle | 0 |
| Cutter Style | M690 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Lead Angle | 90 |
| Rake | Positive |
| Series | M690 |
| Maximum Body Diameter (mm) | 76.52 |
| Overall Height (Mm - 5 Decimals) | 50.00000 |
| Keyway Width (mm) | 12.48 |
| Hub Diameter (mm) | 60.000 |
| Maximum RPM | 17700.000 |
| Tool Application | Milling; Slotting |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Number of Adjustable Pockets | 0 |
| ISO Number | 12396954600 |
| Complete Insert Compatibility | SD__1204___ |
| Toolholder Material | Steel |
| Manufacturers Catalog Number | 12396954600 |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 6 |
| Number Of Flutes | 6 |
