Brand: Widia / Part #: 2009634
Item #: 99731770
Brand: Widia
Model #: 2009634
Product Specifications
| Thread Type | Internal |
| Hand of Holder | Right Hand |
| Compatible Insert Size Code | 4 |
| Shank Width/Diameter (mm) | 32.00 |
| Toolholder Style | AVR |
| Insert Compatibility | 4IR |
| Coolant Entry Style Code | 0-Without Coolant |
| Insert Holding Method | Screw |
| Shank Height (mm) | 29.00 |
| Shank Length (mm) | 190.000 |
| Overall Length (mm) | 250.0000 |
| Minimum Bore Diameter (mm) | 39.00 |
| Series | AVR |
| Multi-use Tool | No |

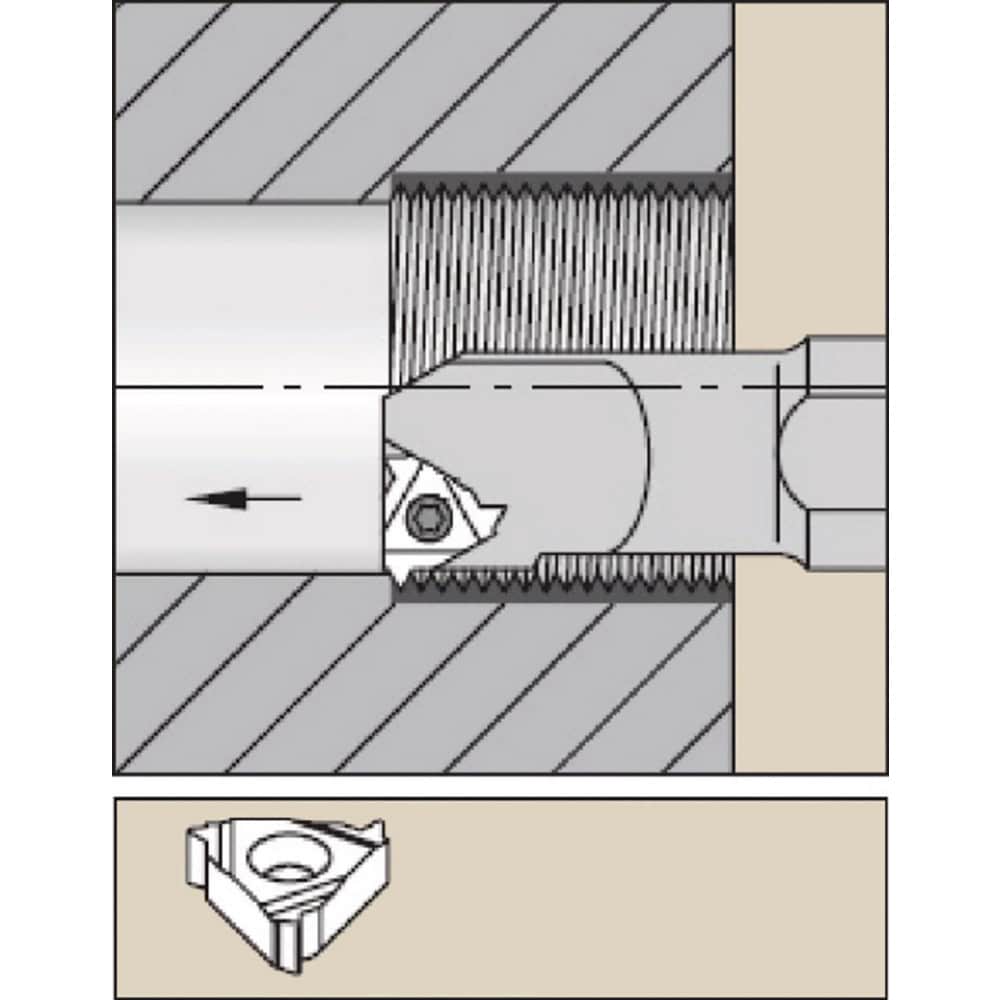

| Cutting Tool Application | Threading |
| Head Length (mm) | 60.00 |
| Maximum Depth of Cut (mm) | 2.00 |
| Adjustable Overhang | Yes |
| Back of Bar to Cutting Edge (mm) | 37.50 |
| Center to Cutting Edge (mm) | 21.50 |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
| Insert Inscribed Circle (Inch) | 1/2 |
| Insert Inscribed Circle (mm) | 12.70 |
| Primary Workpiece Material Code | P; S; H; K; M; N; O |
| Toolholder Material | Steel |
| Coolant Through | No |
