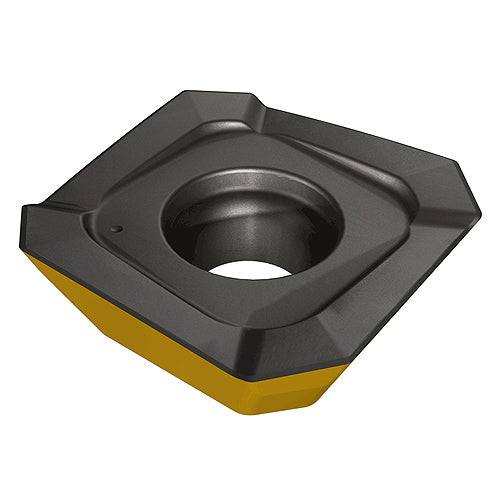

SECT 140420AR IC830
Item #: EH563314324
Brand: Iscar
Model #: 3314324
| Product Specifications | |
|---|---|
| Applicable Material | | Steel | Stainless Steel | Hi Temp Alloys | |
| Maximum Feed per Tooth (fz(max)) | 0.0079 ″/tooth |
| Application | | Facing | Milling Inserts | Slanted Shoulder & Chamfer | |
| Cutting Direction (HAND) | Right Hand |
| Insert Length (INSL) | 0.553″ |
| Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.0787″ |
| Tool Type | Single sided Inserts |
| Depth of Cut Maximum (APMX) | 0.217″ |
| Minimum Feed per Tooth (fz(min)) | 0.0047 ″/tooth |
| Insert Thickness (S) | 0.177″ |
| Measurement Type | Inch |
| Coating | AlTiN+TiN |
| Body Material | Carbide |
| Grade | IC830 |
