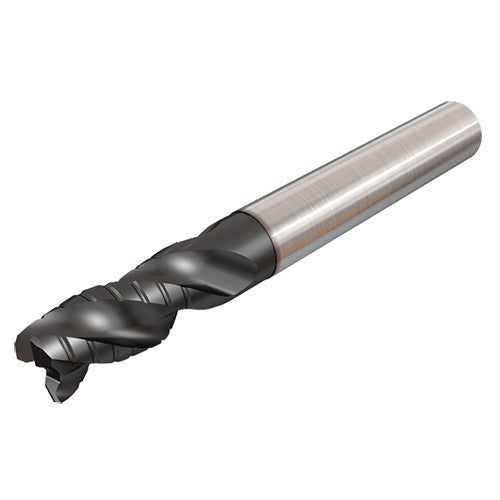

ECP-E3L 06-14/20W06S57 IC900
Item #: EH5622195
Brand: Iscar
Model #: 5622195
| Product Specifications | |
|---|---|
| Cutting Diameter (DC) | 6 mm |
| Application | | Counter Boring | Drill Mill | Helical Interpolation | Plunging & Recessing | Rampdown | Shouldering | Slotting | |
| Connection Diameter Machine Side (DCONMS) | 6 mm |
| Corner Chamfer Width (CHW) | 0.3 mm |
| Depth of Cut Maximum (APMX) | 14 mm |
| Ramping Angle Maximum (RMPX) | 5 Degrees |
| Overall Length (OAL) | 57 mm |
| Grade | IC900 |
| Cutting Edge Material | Carbide |
| Tool Type | Solid carbide center cutting endmills 90° |
| Coating | AlTiN |
| Maximum Feed per Tooth (fz(max)) | 0.06 mm/tooth |
| Flute Count (NOF) | 3 |
| Minimum Feed per Tooth (fz(min)) | 0.03 mm/tooth |
| Flute Helix Angle (FHA) | 38 Degrees |
| Body Material | Carbide |
| Shank Type | Weldon |
| Style | Solid Carbide Center Cutting Endmills 90° |
| End Shape | Chamfer |
| Measurement Type | Metric |
| Usable Length (LU) | 20 mm |
| Connection Code Machine Side (CCMS) | Weldon |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Hi Temp Alloys | |
