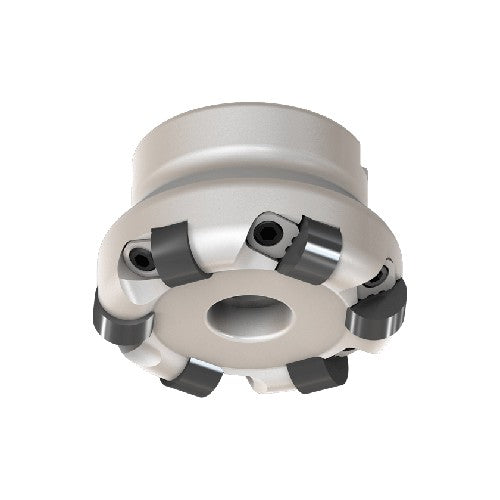

FRN D153A200-5-.75-12
Item #: EH313383052
Brand: Iscar
Model #: 3383052
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 2″ |
| Arbor Style | A |
| Cutting Diameter (DC) | 1-1/2″ |
| Master Insert Identification (MIID) | RNGN 1207 |
| Cutting Diameter Maximum (DCX) | 2″ |
| Coolant Supply Property (CSP) | Through Hole |
| Cutting Item Count (CICT) | 5 |
| Body Material | Steel |
| Depth of Cut Maximum (APMX) | 0.118″ |
| Cutting Direction (HAND) | Right Hand |
| Connection Diameter Machine Side (DCONMS) | 3/4″ |
| Application | | Facing | Helical Interpolation | Profiling | Rampdown | Shouldering | |
| Overall Length (OAL) | 1.57″ |
| Measurement Type | Inch |
| Hub Diameter (DHUB) | 1-3/4″ |
