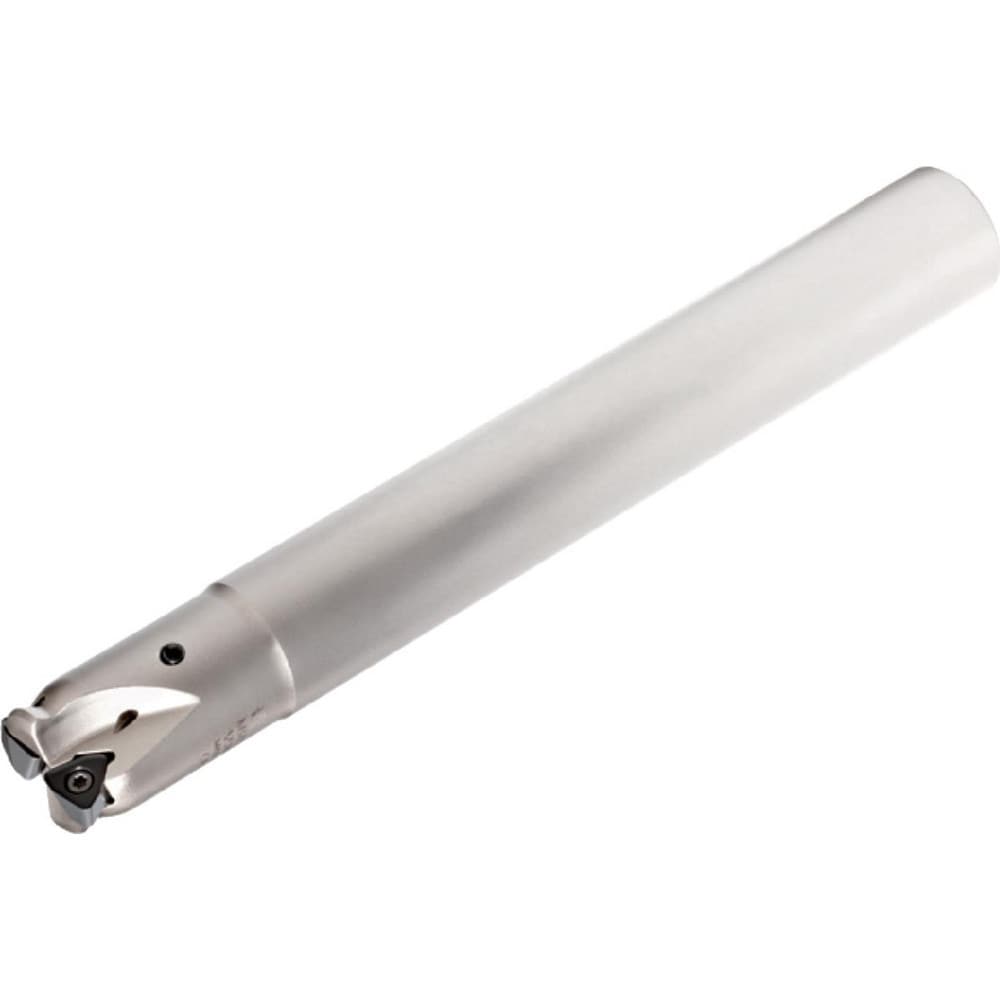

Brand: Widia / Part #: 4171167
Item #: 99577355
Brand: Widia
Model #: 4171167
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 0.9500 |
| Maximum Cutting Diameter (Decimal Inch) | 1.5000 |
| Maximum Cutting Diameter (Inch) | 1-1/2 |
| Maximum Depth of Cut (Decimal Inch) | 0.0492 |
| Toolholder Style | M370 |
| Shank Type | Cylindrical |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Shank Diameter (Inch) | 1-1/4 |
| Maximum Ramping Angle | 1.5 |
| Compatible Insert Style | WOEJ |
| Compatible Insert Size Code | WOEJ080412 |
| Insert Holding Method | Screw |
| Number Of Cutter Inserts | 3 |
| Overall Length (Decimal Inch) | 7.6860 |
| Series | M370 |
| Flute Type | Straight |
| Maximum RPM | 34500.000 |
| Modular Connection Size | None |
| Head Length (Decimal Inch) | 1.5000 |
| Projection (Decimal Inch) | 1.5000 |
| Tool Application | Facing; Plunging; Ramping; Shouldering; Slotting |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Hard Material; Non-Ferrous Metal; Stainless Steel; Cast Iron; Super-alloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; H; K; M; N |
| Weldon Flat | No |
| End Mill Type | High Feed |
| Complete Insert Compatibility | WOEJ080412SRMH |
| Lead Angle | 12 |
| Number Of Flutes | 3 |
| End Mill Material | Steel |
| Coolant Through | Yes |
