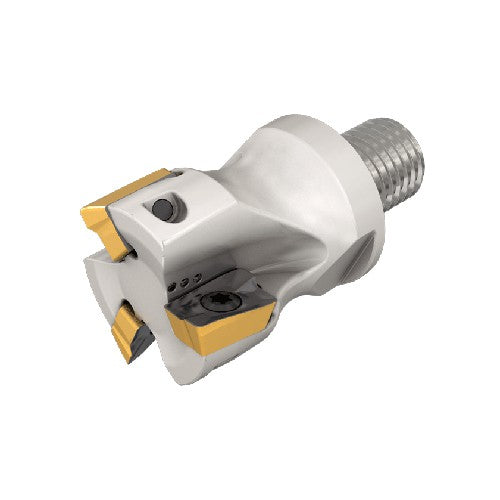

HM90 E90AD D32-3-M16-JHP
Item #: EH233365378
Brand: Iscar
Model #: 3365378
| Product Specifications | |
|---|---|
| Cutting Diameter (DC/DCX) | 1.26″ |
| Functional Length (LF) | 1.575″ |
| Cutting Diameter (DC) | 1.26″ |
| Tool Type | 90° indexable endmills |
| Cutting Item Count (CICT) | 3 |
| Connection Thread Nominal Size Machine Side (THSZMS) | M16 |
| Depth of Cut Maximum (APMX) | 0.563″ |
| Drive Size (DRVS) | 0.984″ |
| Overall Length (OAL) | 2.559″ |
| Flute Count (NOF) | 3 |
| Ramping Angle Maximum (RMPX) | 5.3 Degrees |
| Coolant Supply Property (CSP) | Through Hole |
| Application | | Counter Boring | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | |
| Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Connection Diameter Machine Side (DCONMS) | 1.201″ |
| Cutting Direction (HAND) | Right Hand |
| Master Insert Identification (MIID) | ADKT 1505PDTR |
| Measurement Type | Inch |
| Weight of Item (WT) | 0.37 Lbs |
| Body Material | Steel |
