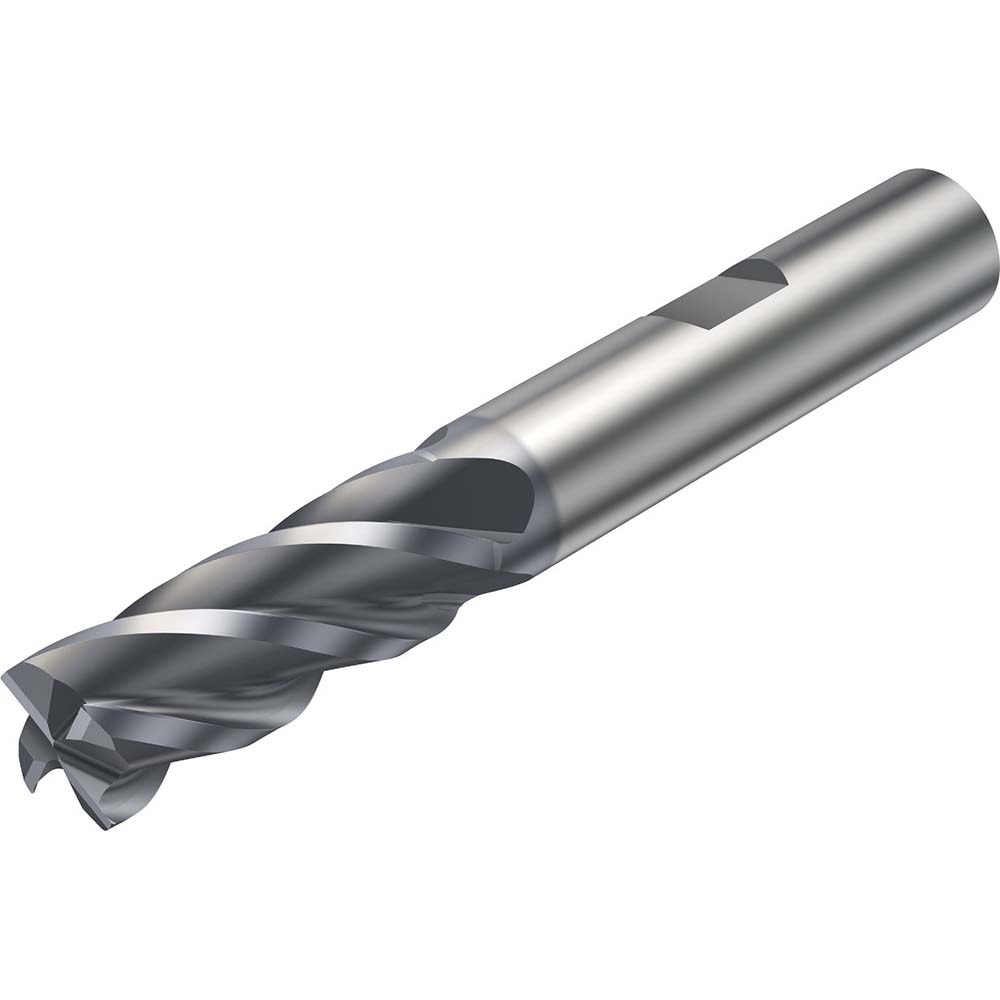

Brand: Sandvik Coromant / Part #: 8351857
Item #: 67599373
Brand: Sandvik Coromant
Model #: 8351857
Product Specifications
| Mill Diameter (mm) | 20.00 |
| Chamfer Width (mm) | 0.250 |
| Coating/Finish | TiAlCrSiN |
| End Mill Material | Solid Carbide |
| Number Of Flutes | 4 |
| Single Or Double End | Single |
| Overall Length (mm) | 109.6000 |
| Length of Cut (mm) | 42.0000 |
| Cutting Direction | Right Hand |
| Coolant Through | No |
| Mill Diameter (Decimal Inch) | 0.7874 |
| Flute Direction | Right Hand |
| Helix Angle | 42 |
| Chipbreaker | No |
| Chamfer Angle | 45.000 |
| Length Type | Regular |
| Flute Type | Spiral |
| Extended Reach | No |
| Shank Type | Weldon Flat |
| Centercutting | Yes |
| Material Removal Type | Roughing |
| Shank Diameter (mm) | 20.0000 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P |
| Secondary Workpiece Material | Cast Iron |
| Secondary Workpiece Material Code | K |
| Series | CoroMill? Plura |
| Coating Classification | PVD |
| Manufacturers Catalog Number | 2P342-2000-PB P2BM |
