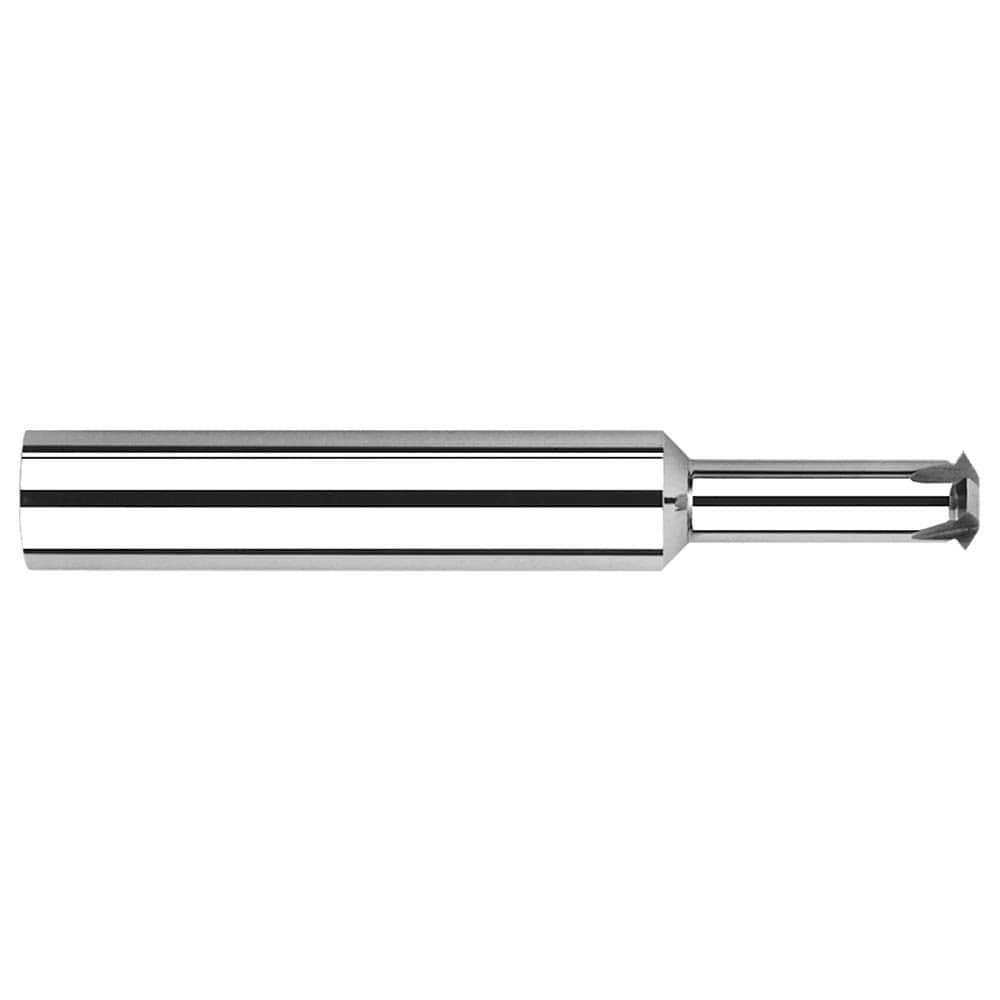

Brand: Harvey Tool / Part #: 54201

Brand: Harvey Tool / Part #: 54201


Item #: 82498395
Brand: Harvey Tool
Model #: 54201

Product Specifications

Maximum Threads Per Inch 90
Minimum Pitch (Decimal Inch) 0.0111
Minimum Threads Per Inch 90
Maximum Pitch (Decimal Inch) 0.0111
Material Solid Carbide
Thread Type Internal/External
Thread Size #00-90
Thread Depth (Decimal Inch) 0.1250
Shank Diameter (Inch) 1/8
Cutting Diameter (Decimal Inch) 0.0320
Minimum Nominal Diameter (Inch) #00
Overall Length (Decimal Inch) 1.5000
Overall Length (Inch) 1-1/2
Neck Diameter (Decimal Inch) 0.0160
Shank Length (Decimal Inch) 1.3750
Series Thread Milling Cutters - Single Form - UN Threads
Thread Standard UN 60 Degree
Number Of Flutes 2
Coating/Finish Uncoated
