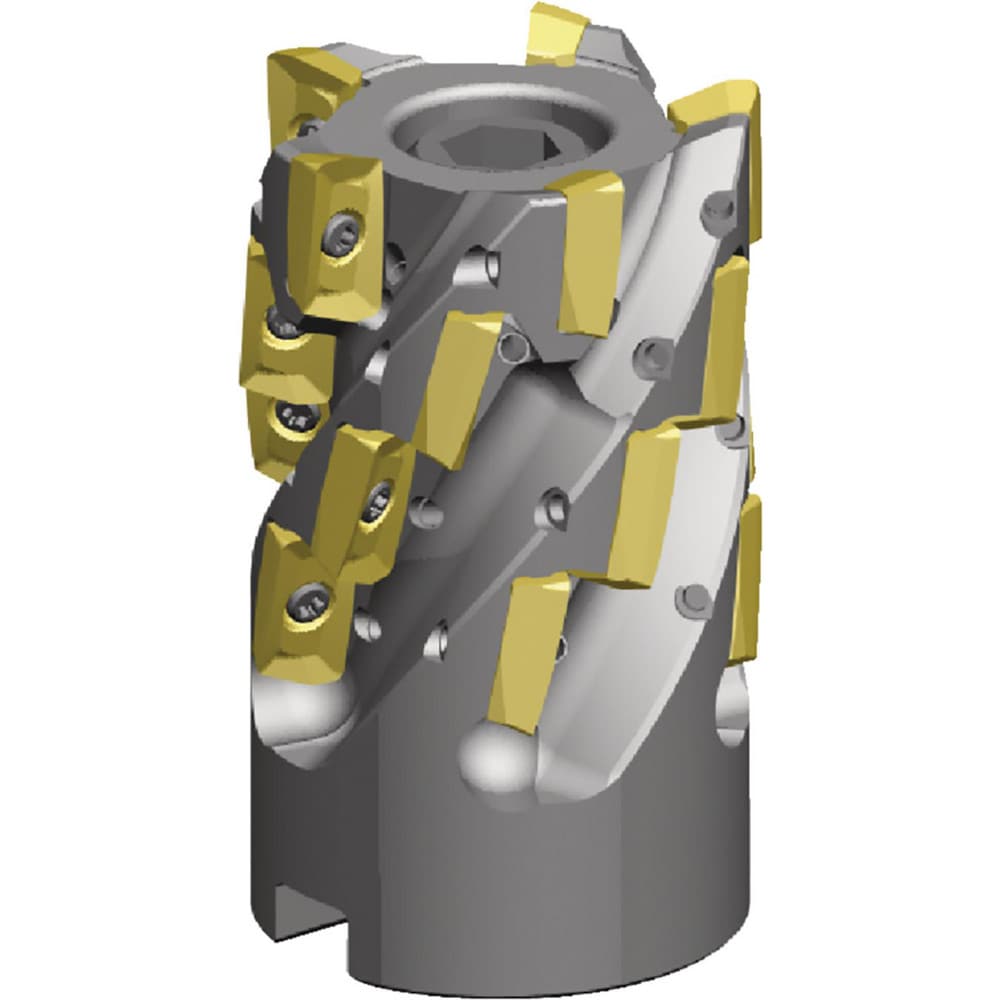

Brand: Widia / Part #: 6425437
Item #: 09910167
Brand: Widia
Model #: 6425437
Product Specifications
| Minimum Cutting Diameter (Decimal Inch) | 1.5000 |
| Maximum Cutting Diameter (Decimal Inch) | 1.5000 |
| Maximum Depth of Cut (Decimal Inch) | 1.6500 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Compatible Insert Size Code | XD_T110408PD_R__ |
| Maximum Ramping Angle | 2.5 |
| Cutter Style | VSM |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw |
| Lead Angle | 90 |
| Rake | Positive |
| Series | VSM11H |
| Maximum Body Diameter (Decimal Inch) | 1.4234 |
| Overall Height (Decimal Inch) | 2.5000 |
| Keyway Width (mm) | 8.19 |
| Hub Diameter (Decimal Inch) | 1.3500 |
| Maximum RPM | 23300.000 |
| Tool Application | Shouldering |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Number of Adjustable Pockets | 0 |
| ISO Number | VSM11H150Z05S075XD11 |
| Complete Insert Compatibility | XD_T110408PD_R__ |
| Toolholder Material | Steel |
| Manufacturers Catalog Number | VSM11H150Z05S075XD11 |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 20 |
| Number Of Flutes | 5 |
